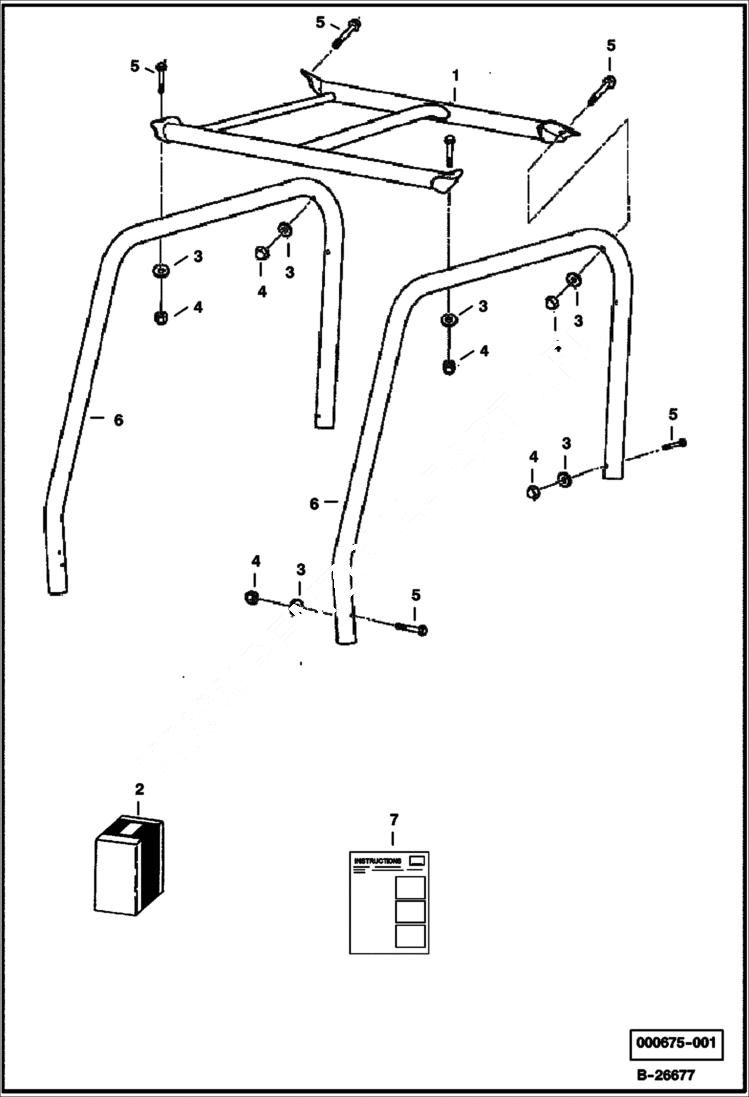

Запчасти Bobcat 2200 ROPS MAIN FRAME

1

103172801CC

ROPS ASM

2

103216001CC

ROPS KIT W/Ref. 3-7

3

102718101CC

WASHER

4

102718201CC

NUT

5

102988701CC

FLG, M10X1.5X65 bolt

6

103191901CC

TUBE

7

INSTRUCTIONS NSS - ROPS kit - Was 103217001CC - A
