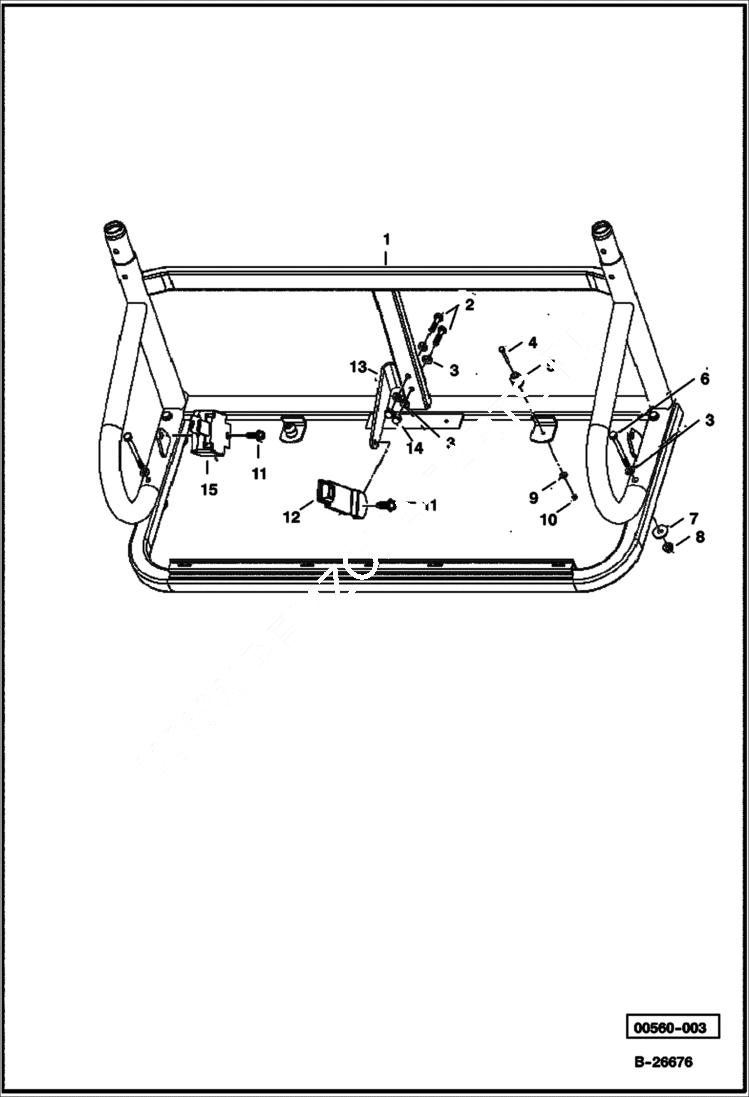

Запчасти Bobcat 2200 LOWER ROPS MAIN FRAME

1

103361701CC

SUPPORT, SEAT Was 103244501CC - A

2

102732401CC

BOLT

3

102718101CC

WASHER

4

96742515CC

SCREW

5

102059001CC

BASE

6

102491301CC

BOLT Was 102732301CC - A

7

102491501CC

WASHER

8

102617201CC

NUT

9

332CC

WASHER

10

101887601CC

NUT

11

102671201CC

SCREW

12

103529701CC

BELT, SEAT buckle - Was 102447601CC - A

13

102678401CC

BRACKET

14

103216401CC

FLG, M10X1.5 Was 102718201CC - A

15

103529801CC

RETRACTOR, BELT SEAT Was 102447602CC - A
