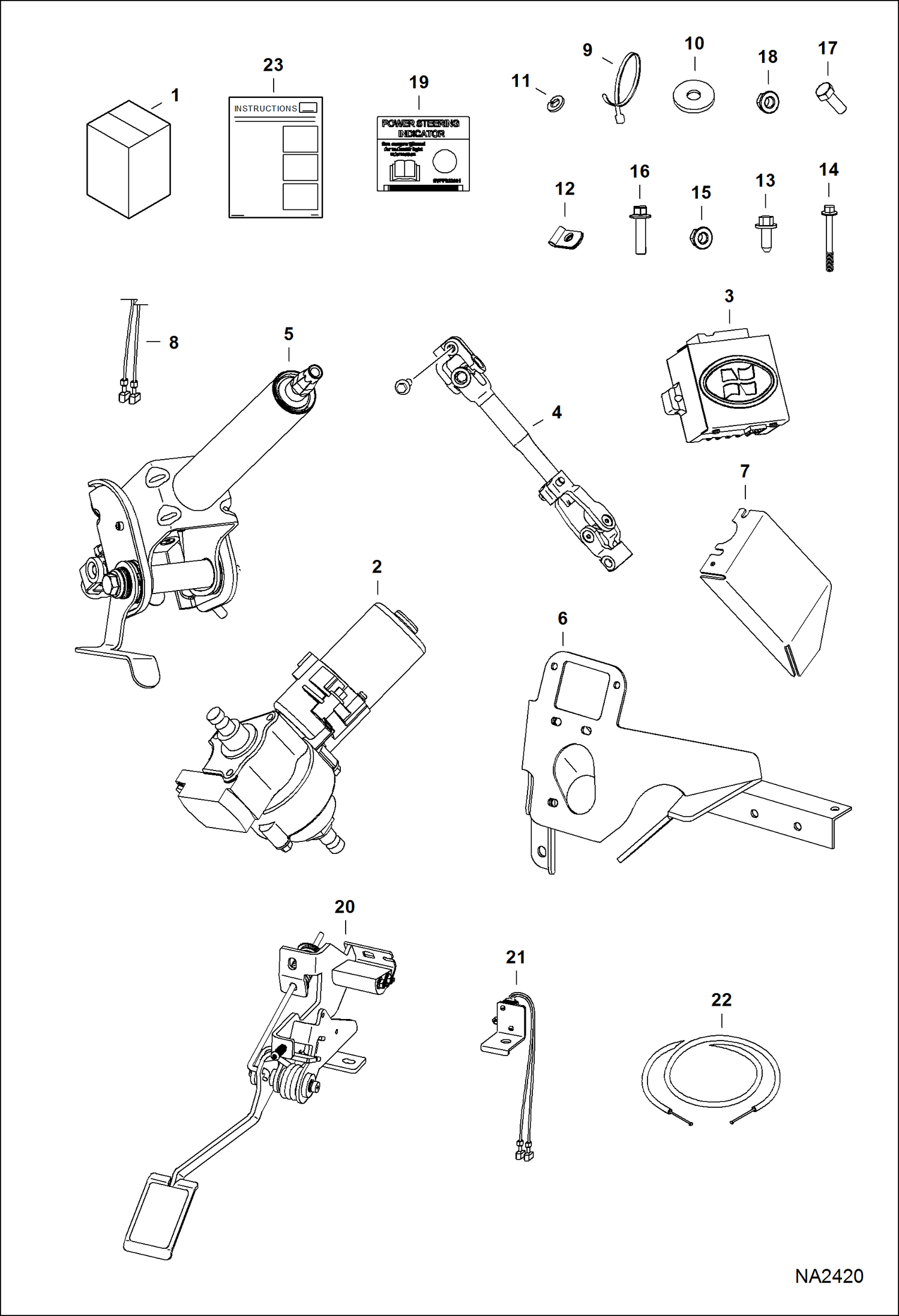

Запчасти Bobcat 2200 POWER STEERING KIT ACCESSORIES & OPTIONS

1

SVP302502CC

KIT, STEERING POWER W/Ref. 2-19 - includes SVP302601 instructiions

1

SVP302503CC

KIT, STEERING POWER W/Ref. 2-21 - Also order Ref. 22 as needed - includes SVP302601 instructiions

2

SVP299710CC

MOTOR, STEERING POWER

3

SVP299711CC

CONTROLLER, STEERING ASSY Was SVPP299711CC

4

SVP300102CC

SHAFT, STEERING - W/U-JOINT

4

SVPP299801CC

U-JOINT

5

SVP300101CC

COLUMN, STEERING modified for ps

6

SVPP302201CC

BRACKET

7

SVPP306901CC

COVER, STEERING POWER

8

SVP300601CC

HARNESS, POWER STRNG

9

8639CC

TIE STRAP

10

1011578CC

WASHER, 5/16 TYPE B FLAT

11

7174CC

Washer

12

102045801CC

CLAMP

13

102298720CC

M8-1.25X20

14

102618301CC

BOLT

15

102298401CC

NUT 8mm lock nut

16

102298130CC

BOLT

17

102289002CC

SCREW

18

96704416CC

NUT

19

SVPP333001CC

DECAL, INDICATOR power steering

20

103278101CC

ACCEL PEDAL

21

103259401CC

FRONT DIFF ENGAGING SWITCH

22

103277301CC

ACCEL. CABLE not in kit

22

102498801CC

CABLE ACCELERATOR diesel - W/2wd - not in kit

22

103921901CC

CABLE, THROTTLE diesel - W/4wd - not in kit - Was 103600901CC - A

23

INSTRUCTIONS NSS
