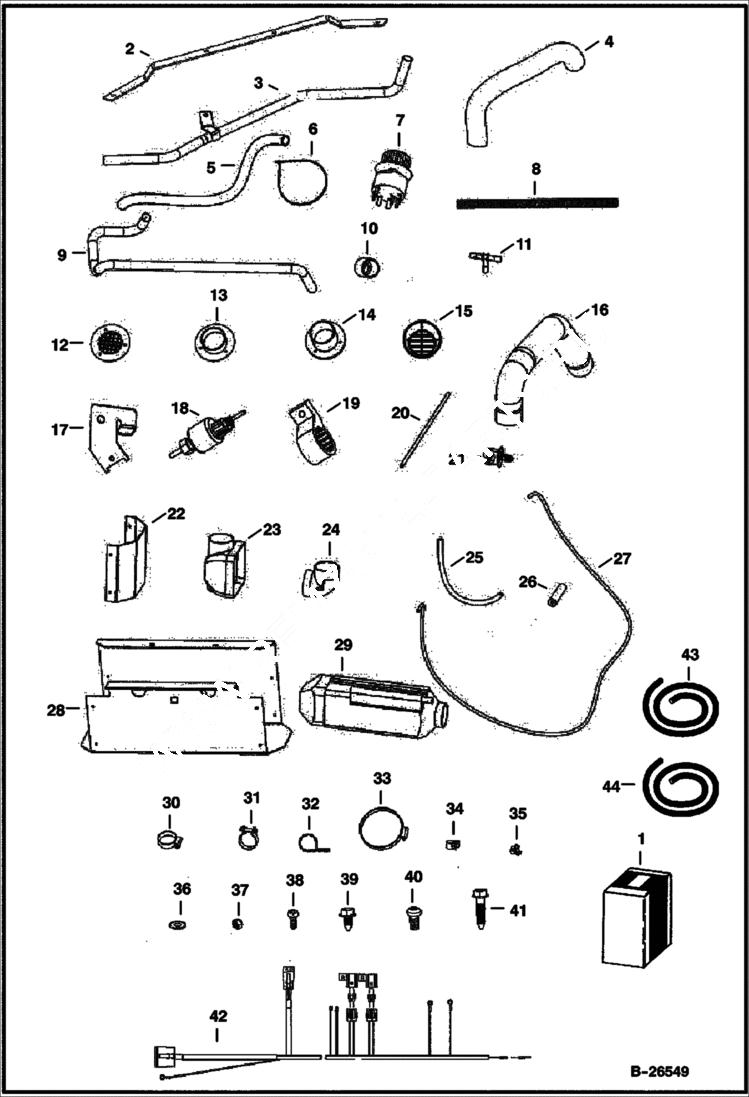

Запчасти Bobcat 2200 CAB HEATER KIT (Gas engine) ACCESSORIES & OPTIONS

1

103255501CC

KIT, HEATER GAS See Illustration DASH LINER KIT/ MS1485 W/Ref. 2-42 - Also Order 103361401CC Dash Liner kit

2

103293801CC

MOUNT

3

102754601CC

EXHAUST TUBE

4

102754401CC

FLEXIBLE DUCT

5

102747101CC

EXHAUST HOSE

6

6624289

STRAP, TIE

7

102745401CC

SWITCH rheostat

8

102773401CC

CONDUIT HIGH TEMP 22 x 434mm

9

102754202CC

AIR INTAKE HOSE Was 102754201CC - A

10

102754301CC

AIR INTAKE CAP

11

102748001CC

BARBED TEE

12

102748201CC

INLET GRILL VENT

13

102748101CC

FLANGE INLET MOUNT

14

FLANGE OUTLET MOUNT NLA

15

102754701CC

OUTLET VENT

16

102748601CC

FLEXIBLE DUCT

17

102753501CC

FUEL PUMP BRACKET

18

102745201CC

FUEL PUMP

19

102773301CC

FUEL PUMP CLAMP

20

102753601CC

FUEL SHIELD PIPE

21

102475701CC

CLIP

22

102736601CC

HEATER ENDCAP

23

102747801CC

ARI OUTLET HOOD

24

102747901CC

ELBOW DUCT

25

102619001CC

HOSE FUEL cut 11.81'' (300mm)

26

FUEL HOSE NLA - Order Ref. 43 - 2'' (50mm)

27

FUEL HOSE NLA - Order Ref. 44 - 75.98 '' (1930mm)

28

102736701CC

HEATER MOUNT BRACKET

29

102745101CC

AIR HEATER

30

44H16

CLAMP

31

42HS10

CLAMP

32

30H57

CLAMP

33

5HM61

HOSECLAMP

34

17H8

CLAMP

35

42HS04

CLAMP, HOSE

36

25E14

WSHR

37

101835601CC

NUT

38

102628601CC

SCREW

39

26GM8016

SCREW

40

102617301CC

SCREW

41

102289001CC

SCREW

42

102756001CC

WIRE HARNESS

43

6569752

HOSE BULK/FT bulk - sold per foot

44

6578169

HOSE bulk - sold per foot - 0.19'' ID
