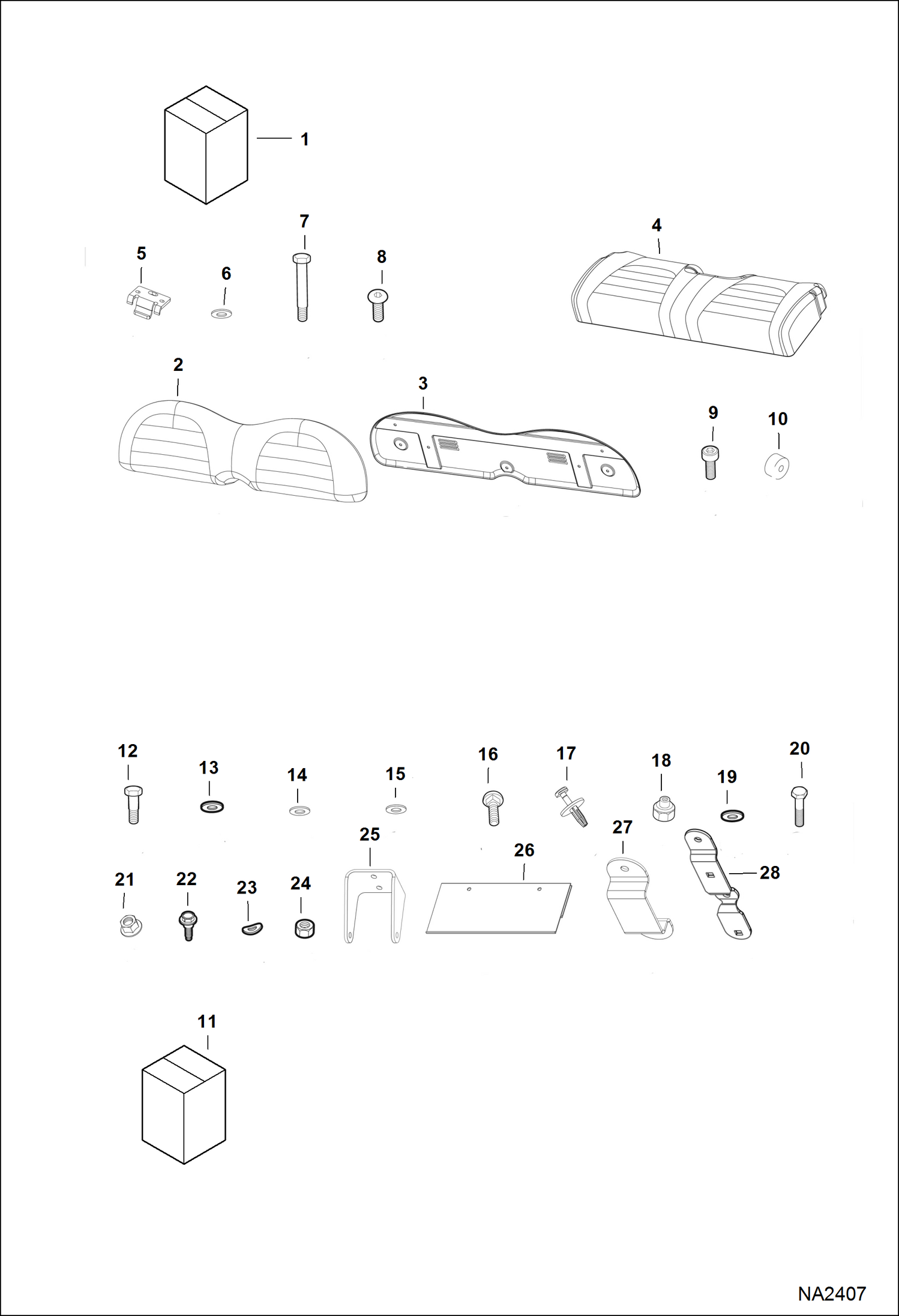

Запчасти Bobcat 2200 BENCH SEAT CONVERSION ACCESSORIES & OPTIONS

1

103647201CC

KIT, BENCH SEAT GRAY W/Ref. 2-10, Also includes instructions (103647201)

1

103647202CC

KIT, BENCH SEAT BLACK

2

103456001CC

BACK, BENCH SEAT GRAY

2

103456002CC

BACK, BENCH SEAT BLACK

3

103831101CC

CAP Was 103580301CC

4

103629102CC

CUSHION, SEAT - GRAY

4

103629101CC

CUSHION, SEAT - BLACK

5

1011652CC

PLATE

6

1011697CC

WASHER, 5/16 FLAT

7

1014201CC

BOLT

8

1014415CC

SCREW

9

103629501CC

SCREW, MACHINE

10

103637401CC

SPACER

11

103643901CC

KIT, SEAT BENCH CONVERSION W/Ref. 12-28 - also includes instructions (103645001)

12

304CC

SCREW

13

1010193CC

WASHER

14

1011964CC

WASHER

15

1014557CC

WASHER

16

101958601CC

BOLT

17

102967901CC

PLASTIC RIVET

18

102242401CC

NUT, LOCK

19

102718101CC

WASHER

20

102732401CC

BOLT

21

103216401CC

FLG, M10X1.5

22

103529601CC

BOLT, SHOULDER

23

103530701CC

WASHER, SPRING

24

1035342011CC

NUT, LOCK

25

103635101CC

BRACKET, SEAT BELT

26

103636701CC

PANEL, CLOSEOUT EXTRUSION

27

103646501CC

BRACKET, SEAT

28

103646601CC

BRACKET, SEAT
