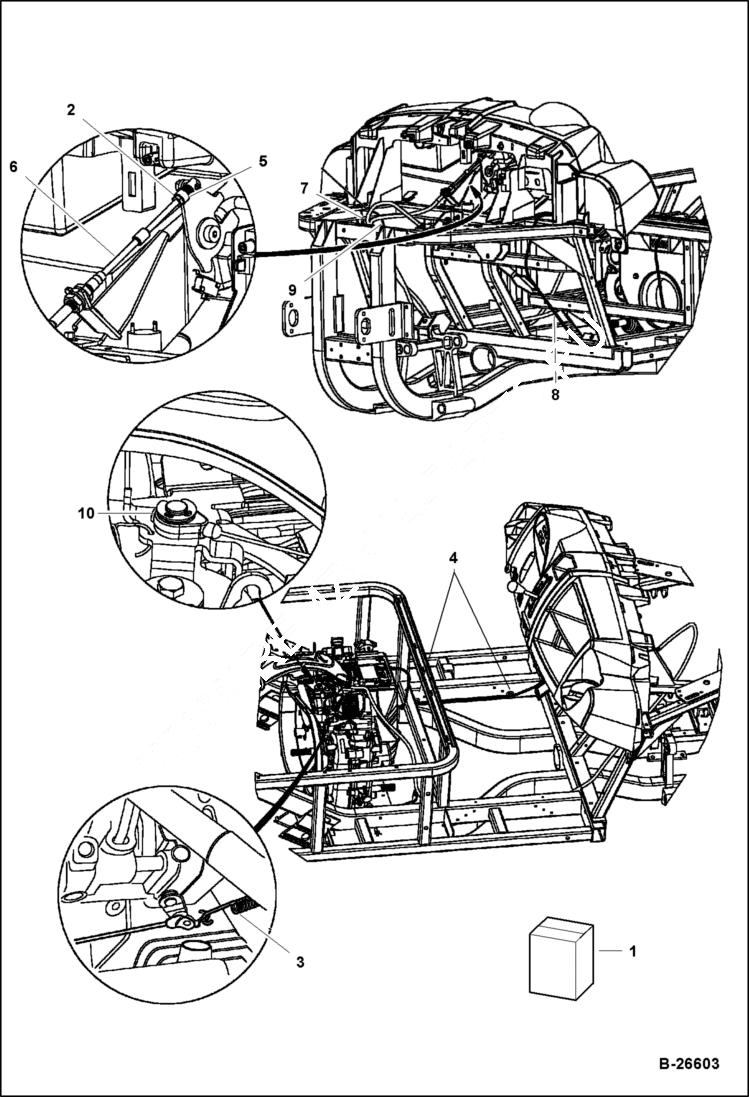

Запчасти Bobcat 2200 CABLES KAWASAKI ENGINE POWER UNIT

1

103276501CC

CABLE ASMBLY. W/Ref. 2-10 - A

2

1011084CC

NUT

3

102457001CC

SPRING

4

102475701CC

CLIP

5

102615801CC

SOCKET See Illustration FNR SHIFTER ASSEMBLY/ B26428 - connects W/102615701CC ball stud

6

102495801CC

CABLE TRANSMISSION transmission shift

7

103277301CC

ACCEL. CABLE

8

103277401CC

CHOKE CABLE

9

8990CC

TIE STRAP

10

96950126CC

RETAINING RING
