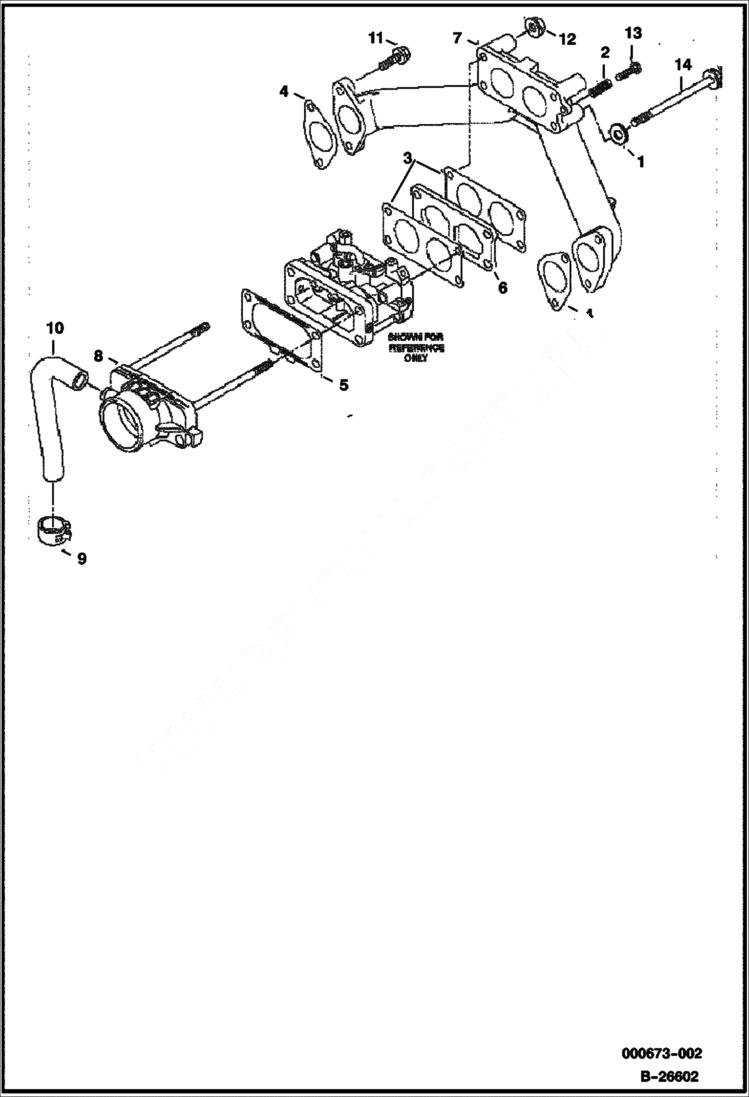

Запчасти Bobcat 2200 CARBURETOR INSTALLATION KAWASAKI ENGINE POWER UNIT

1

1016513CC

WASHER

2

103002801CC

SPRING

3

103003801CC

GASKET

4

103003901CC

GASKET manifold

5

103004201CC

GASKET air filter mount

6

103005001CC

INSULATOR manifold

7

103005601CC

INTAKE MANIFOLD

8

103297101CC

PIPE intake adapter

9

103297201CC

CLAMP

10

103297301CC

TUBE

11

29CM620

SCREW

12

1DM6

NUT Was 4DM6 - A

13

103320301CC

SCREW

14

103320401CC

BOLT M6x105
