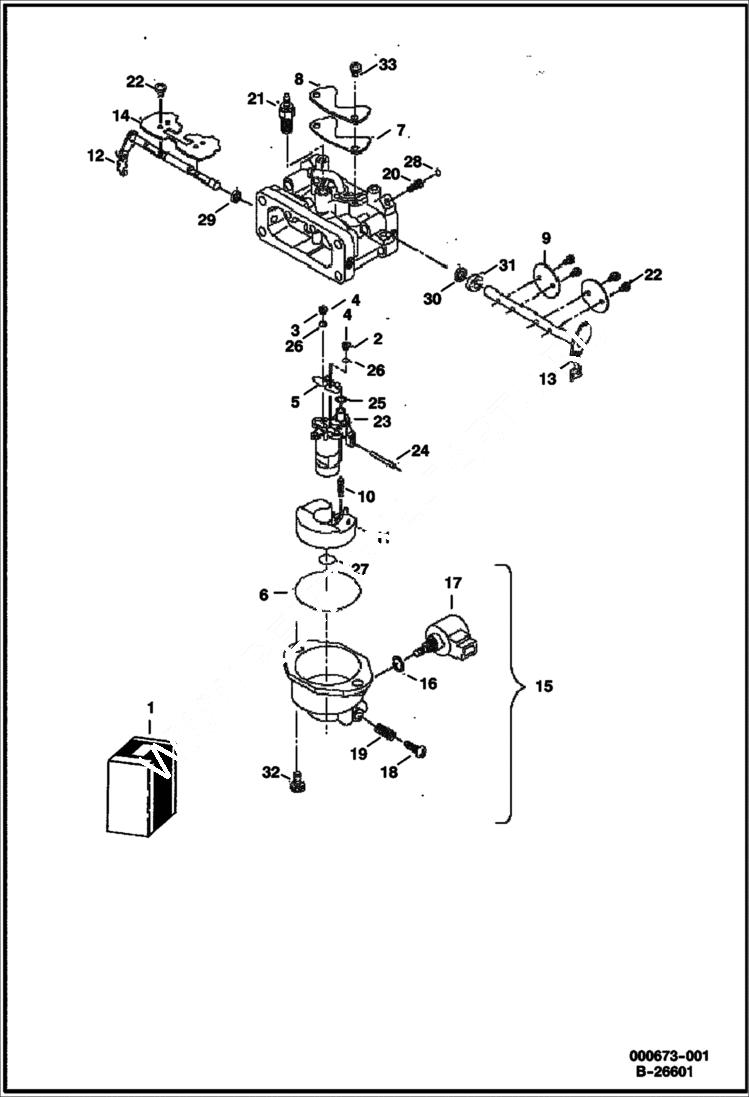

Запчасти Bobcat 2200 CARBURETOR ASSEMBLY KAWASAKI ENGINE POWER UNIT

1

103341001CC

CARBURETOR W/Ref. 2-33

2

JET NLA - #96 push in jet - Order 103307201CC jet kit - Was 103306801CC - A

2

103306801CC

JET for 6600 ft. & higher elevation - (includes two of 103306801CC and instructions) - Was 103307201CC - A

2

#98 JET KIT NLA - for 3300-6600 ft. elevation - (includes two jets and instructions) - Was 103307601CC - A

3

JET NLA - # 99 push in jet - Was 103307301CC - A

3

JET NLA - for 3300-6600 ft. elevation - Was 103306901CC - A

4

#101 JET KIT NLA - for 0-3300 ft. elevation - (includes two jets and instructions) - Was 103307701CC - A

4

JET NLA - #102 push in jet - Order 103307401CC jet kit - Was 103307001CC - A

4

103307001CC

JET for 0-3300 ft. elevation - (includes two of 103307001CC and instructions - Was 103307401CC - A

5

103340601CC

GASKET

6

103340701CC

GASKET

7

103340801CC

GASKET

8

103340901CC

COVER slow passage

9

103341101CC

VALVE

10

103341201CC

VALVE

11

103341301CC

FLOAT

12

103341401CC

SHAFT

13

103341501CC

SHAFT

14

103341601CC

VALVE

15

103341701CC

FLOAT CHAMBER W/Ref. 16-19

16

103340501CC

GASKET

17

103341901CC

SOLENOID

18

103342201CC

DRAIN SCREW drain

19

103343601CC

SCREW

20

103341801CC

NEEDLE

21

103342001CC

HEATER

22

103342101CC

SCREW

23

103342301CC

SPACER

24

PIN NLA - Was 103342401CC - A

25

103342501CC

O-RING

26

103342601CC

O-RING

27

103342701CC

O-RING

28

103343301CC

EXPANSION PLUG expansion

29

103343401CC

SEAL

30

103343501CC

SEAL

31

103343701CC

COLLAR

32

103343801CC

SCREW

33

103343901CC

SCREW
