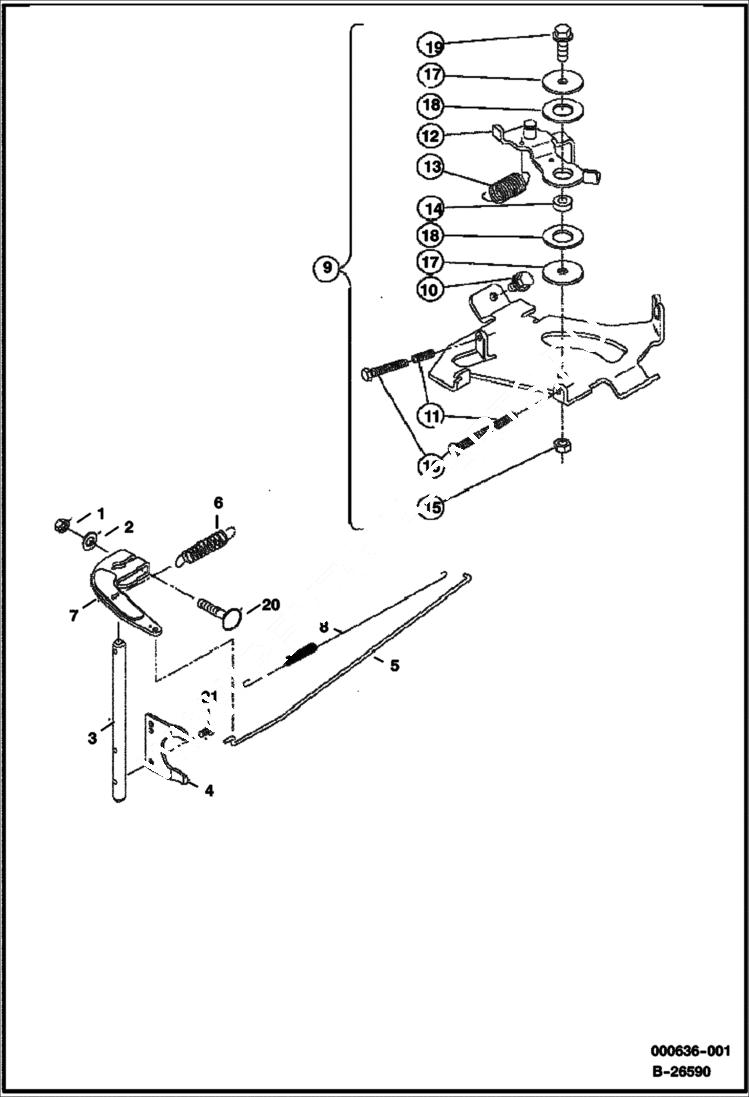

Запчасти Bobcat 2200 GOVERNOR ARM AND SPRINGS KAWASAKI ENGINE POWER UNIT

1

1DM6

NUT Was 4DM6 - A

2

1016513CC

WASHER

3

103002001CC

SHAFT

4

103002101CC

PLATE

5

103002301CC

LINK

6

103002401CC

SPRING

7

103002501CC

ARM

8

103002901CC

SPRING

9

103297701CC

CONTROL PANEL W/Ref. 10-19

10

29CM612

BOLT, FLANGED

11

103002801CC

SPRING

12

103297401CC

LEVER

13

103297501CC

SPRING

14

103297601CC

COLLAR

15

43DM6

NUT

16

103298001CC

BOLT

17

103298201CC

WASHER

18

103298301CC

WASHER

19

29CM620

SCREW

20

103298101CC

BOLT

21

103298601CC

SCREW
