INTAKE DUCT AND AIR BOX KAWASAKI ENGINE

Запчасти Bobcat 2200 INTAKE DUCT AND AIR BOX KAWASAKI ENGINE POWER UNIT

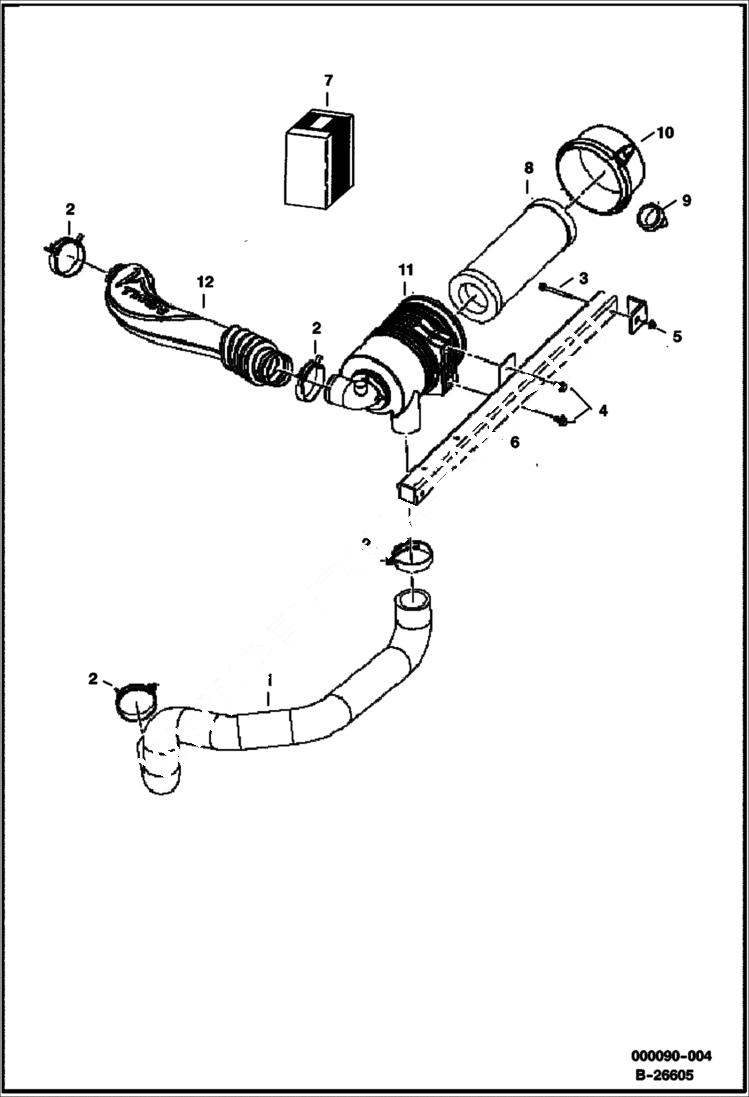

Схема запчастей Bobcat 2200 - INTAKE DUCT AND AIR BOX KAWASAKI ENGINE POWER UNIT
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

102395601CC

HOSE INTAKE

2

102411210CC

CLAMP

3

102541465CC

BOLT

4

29CM816

SCREW

5

43DM6

NUT

6

102794001CC

WELDMENT

7

102810701CC

FILTER AIR CANISTER W/Ref. 8-11

8

6672467

FILTER, AIR OUTER Was 102498601CC - A

9

102725501CC

VALVE EVACUATOR

10

102725601CC

CAP

11

CANISTER BODY NLA - Order Ref. 7

12

103924701CC

HOSE, INTAKE GAS Was 103438201CC - A
