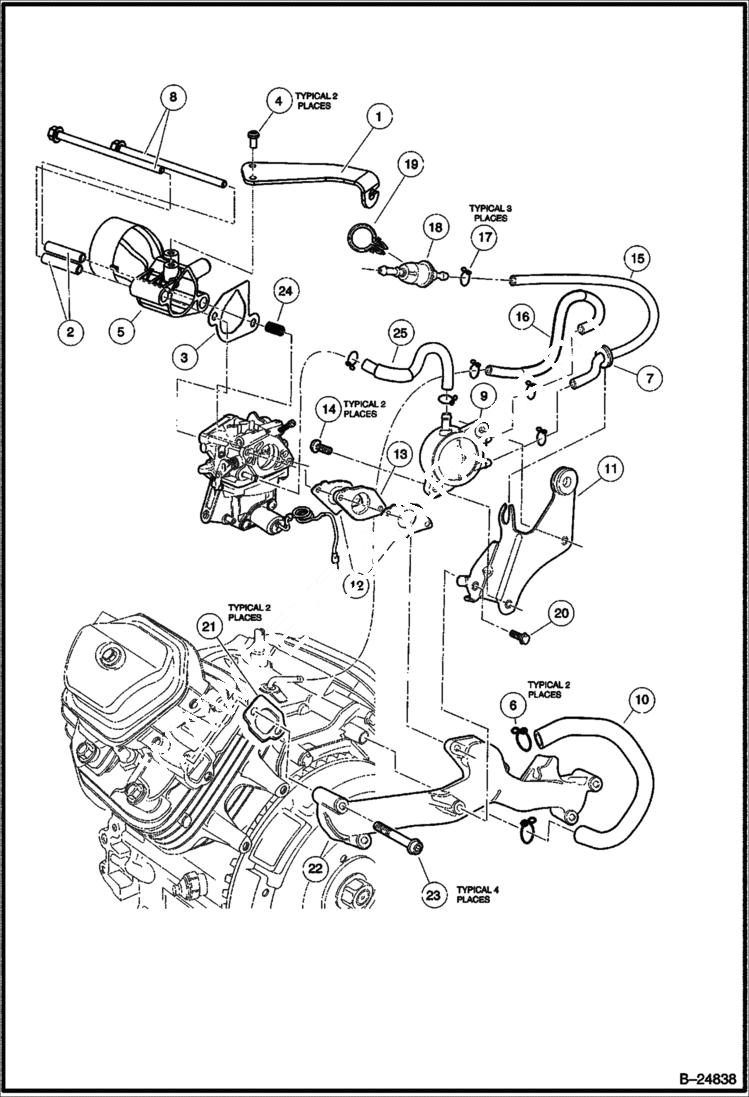

Запчасти Bobcat 2200 CARBURETOR INSTALLATION Gasoline HONDA ENGINE POWER UNIT

1

102385801CC

BRACKET

2

102462601CC

INSERT ADAPTER CARBURETOR

3

102493001CC

GASKET

4

102617301CC

SCREW

5

102620801CC

ADAPTER

6

102656101CC

CLIP

7

102656201CC

GROMMET

8

102656301CC

BOLT

9

102656402CC

PUMP ASSY FUEL SUP

10

102656501CC

TUBE BREATHER

11

102656601CC

STAY FUEL PUMP

12

102656701CC

GASKET

13

102656801CC

INSULATOR

14

102656901CC

SCREW

15

102657001CC

TUBE FUEL

16

102657101CC

TUBE DIAPHRAGM

17

102657201CC

CLIP

18

102657301CC

FILTER FUEL

19

102657401CC

CLIP

20

102657501CC

BOLT

21

102657601CC

GASKET

22

102657701CC

MANIFOLD INTAKE

23

102657801CC

BOLT

24

102710501CC

SPRING

25

102725401CC

TUBE
