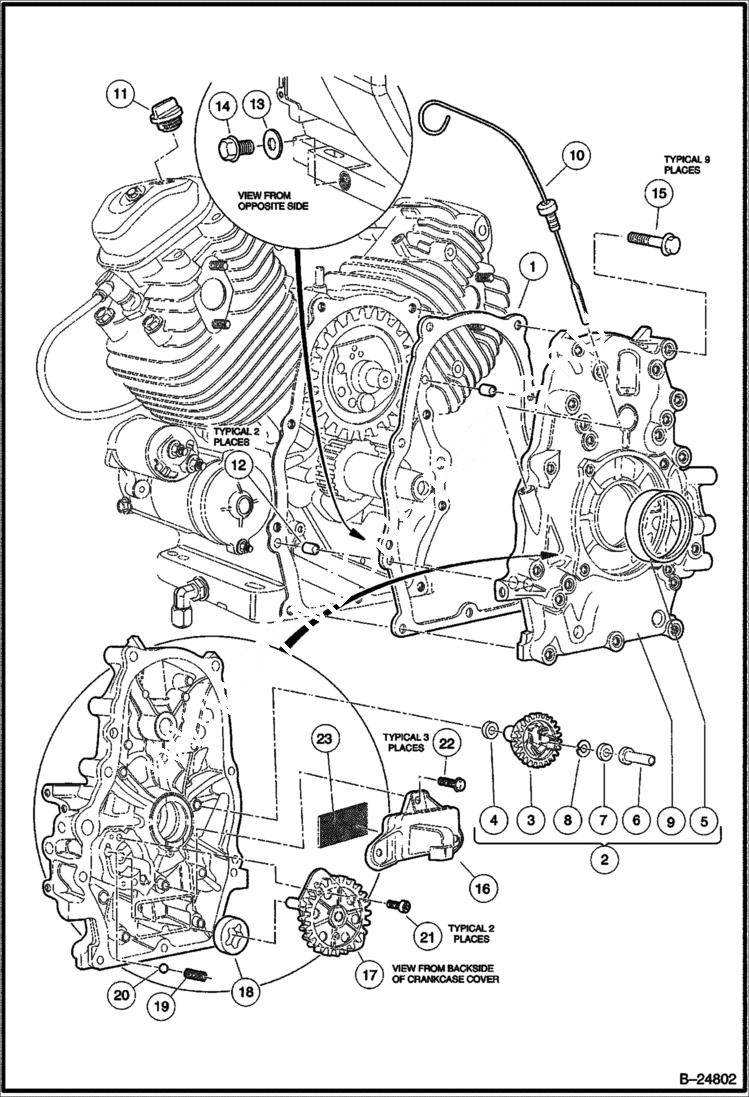

Запчасти Bobcat 2200 OIL CIRCULATION HONDA ENGINE POWER UNIT

1

102658001CC

GASKET

2

102658101CC

COVER ASSY CRANKCASE

3

102658801CC

GOVERNOR ASSY

4

102659601CC

WASHER

5

102724301CC

OIL SEAL

6

102724401CC

SLIDER GOVERNOR

7

102724501CC

WASHER

8

102724601CC

CLIP

9

COVER NLA

10

102658201CC

DIPSTICK OIL

11

102658301CC

CAP OIL FILLER

12

102658401CC

PIN

13

102658501CC

WASHER

14

102658601CC

DRAIN PLUG

15

102658701CC

BOLT

16

102658901CC

COVER

17

102659001CC

COVER ASSY

18

102659101CC

ROTOR

19

102659201CC

SPRING

20

102659301CC

BALL

21

102659401CC

BOLT

22

102659501CC

BOLT

23

102724701CC

SCREEN
