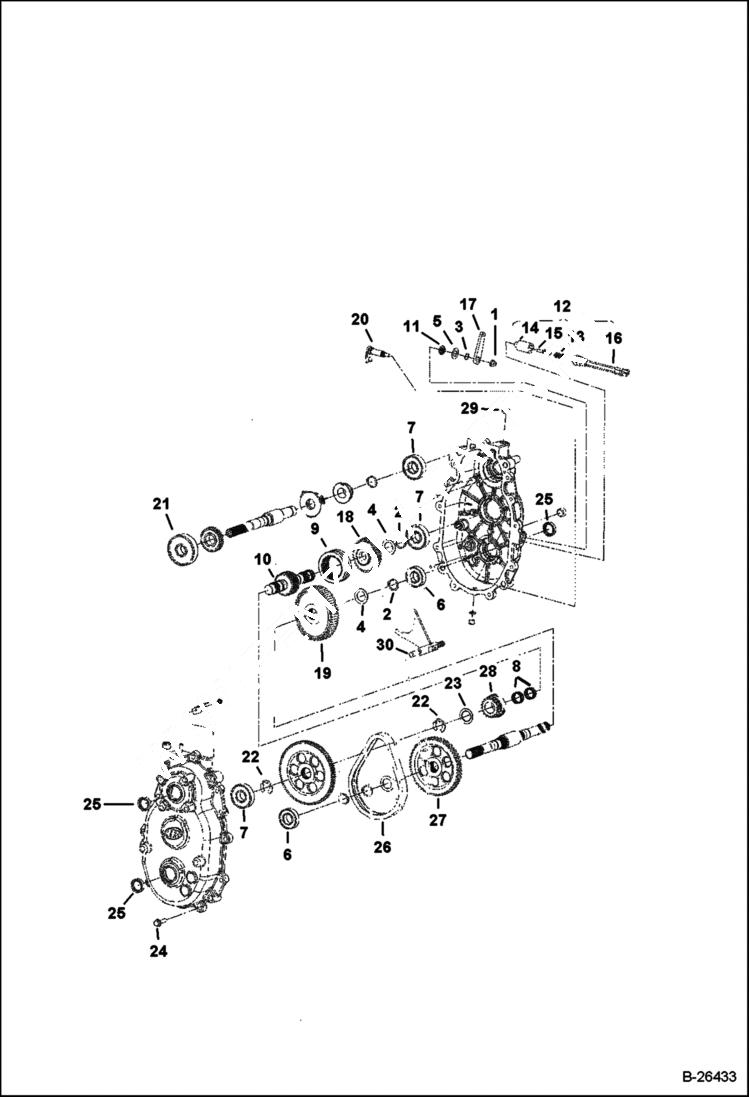

Запчасти Bobcat 2200 TRANSMISSION DIESEL VEHICLE (Early Design) DRIVE TRAIN

1

102696001CC

NUT LOCK

2

102696201CC

RING RETAINING EXT

3

102696401CC

RING RETAINING EXT

4

102696501CC

WASHER

5

102696601CC

WASHER

6

102696801CC

BEARING

7

102696901CC

BEARING

8

102697101CC

BEARING

9

102697501CC

DOG ENGAGEMENT

10

102698701CC

SHAFT INTERMEDIATE

11

102699601CC

SEAL LIP

12

102765101CC

KIT NEUTRAL SWITCH REPAIR W/Ref. 13-16

13

SPRING NLA - order Ref. 12

14

GUIDE NLA - Order Ref. 12

15

DETENT BULLET NLA - Order Ref. 12

16

INDICATOR SWITCH NLA - Order Ref. 12

17

103239501CC

BELLCRANK

18

103239601CC

GEAR 35 tooth spur

19

GEAR NLA - 65 tooth spur

20

103239801CC

SHAFT

21

102697001CC

BEARING

22

102699701CC

RING RETAINING

23

102696701CC

WASHER

24

102693301CC

SCREW

25

102699401CC

SEAL

26

CHAIN NLA - Order 102943201CC transmission

27

SPROCKET NLA - 51 tooth - Order 102943201CC transmission

28

SPROCKET NLA - 19 tooth - Order 102943201CC transmission

29

102721501CC

SEAL LIP

30

102697801CC

FORK WA TRANS
