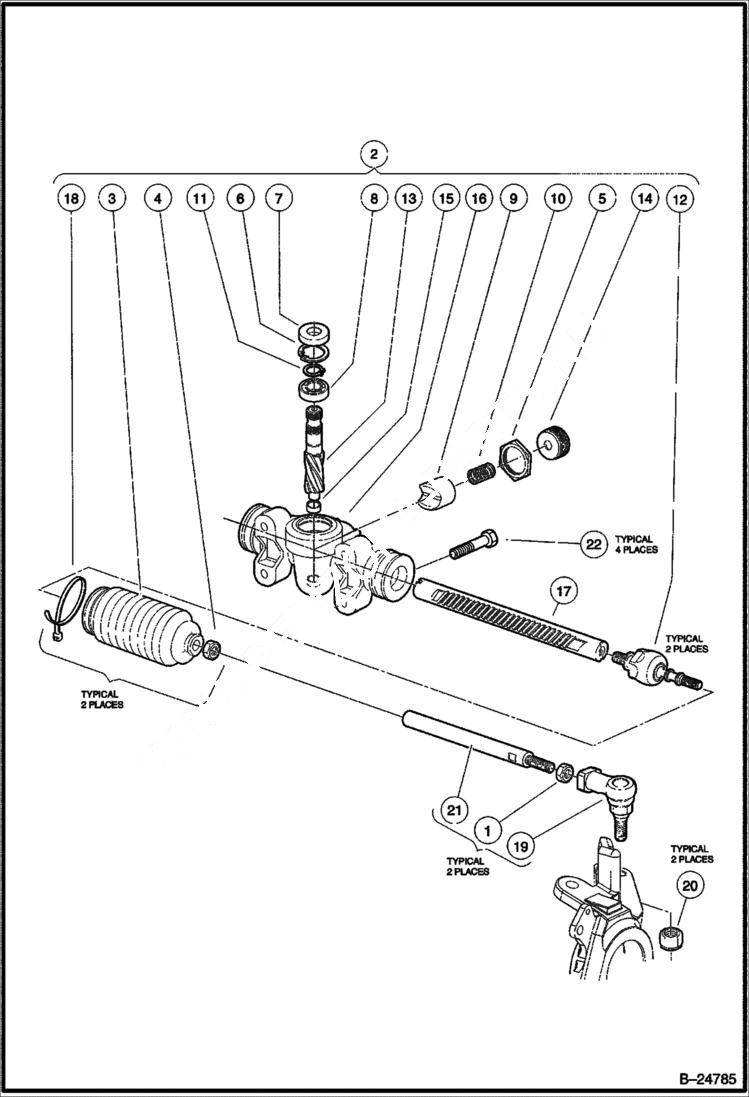

Запчасти Bobcat 2200 STEERING GEAR ASSEMBLY CHASSIS

1

1013042CC

NUT

2

102010102CC

STEERING RACK W/Ref. 3-18

3

1013035CC

SEAL

4

1013042CC

NUT

5

1013044CC

NUT

6

1013051CC

RING

7

1013052CC

SEAL

8

101879401CC

BEARING

9

101879701CC

GUIDE

10

101879801CC

SPRING

11

101879901CC

RING

12

101880201CC

BALL JOINT ASSY

13

PINION NLA - Order Ref. 2

14

BEARING NLA - Order Ref. 2

15

RACK GUIDE NLA - Order Ref. 2

16

HOUSING NLA - Order Ref. 2

17

RACK NLA - Order Ref. 2

18

8990CC

TIE STRAP

19

102022601CC

BALL JOINT

20

102022901CC

NUT

21

102816801CC

DRAG LINK

22

102687801CC

BOLT
