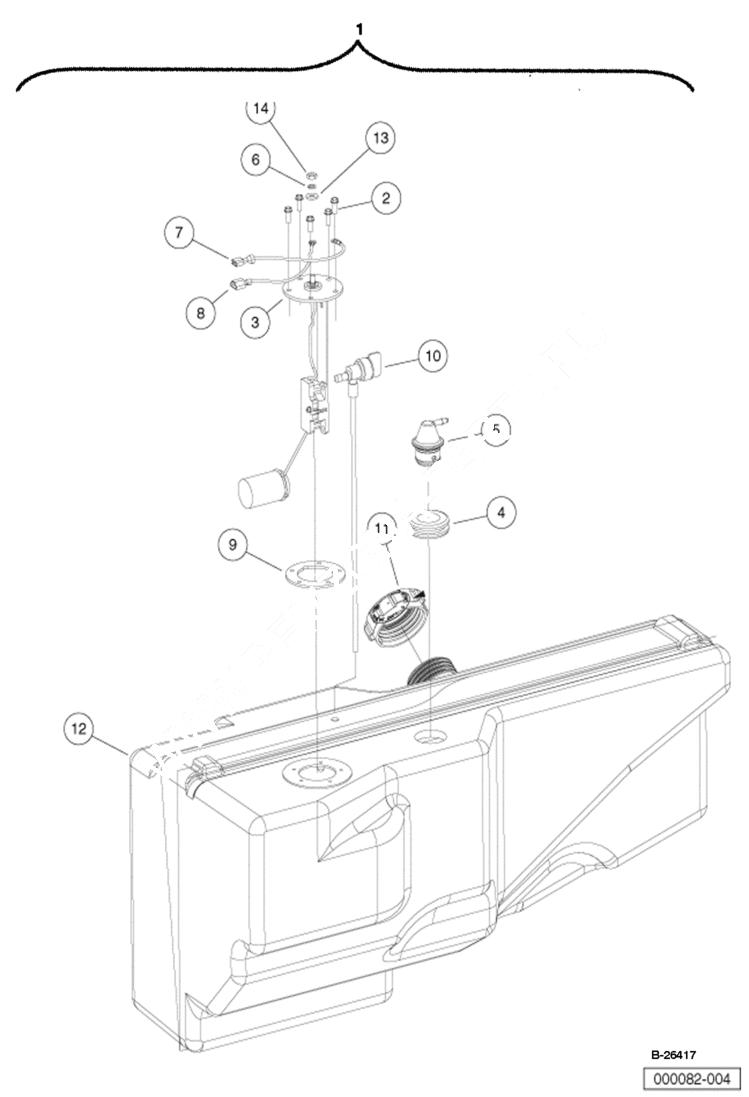

Запчасти Bobcat 2200 FUEL TANK GASOLINE VEHICLE MAIN FRAME

1

103963701CC

TANK, FUEL W/Ref. 2-14 - Was 103956701CC - A

2

1013461CC

SCREW

3

1013462CC

SENDER Also Order Ref. 9

4

1015139CC

GROMMET Use W/Ref. 1 (NLA/ 102952102CC, 103664501CC & 103956701CC fuel tank)

4

103944301CC

GROMMET Use W/Ref. 1 (103963701CC fuel tank)

5

103923101CC

KIT, FUELTANK VENT Was 1015143CC - A

6

1016CC

WASHER

7

WIRE ASS'Y NLA - blk-170mm

8

WIRE ASS'Y NLA - org-170mm

9

102522001CC

GASKET rubber

10

102670901CC

VALVE

11

7031365

CAP, GAS Was 102751601CC - A

12

FUEL TANK NLA - gas- Order Ref. 1

13

183CC

WASHER

14

8797CC

NUT
