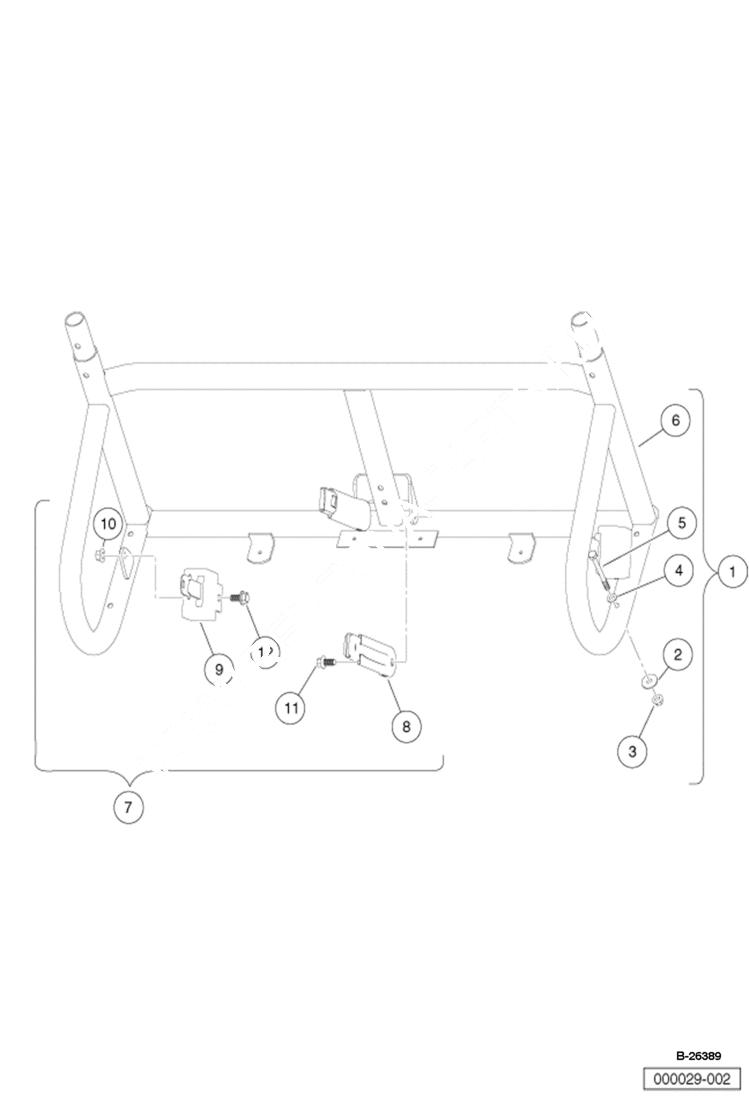

Запчасти Bobcat 2200 SEAT BELTS AND LOWER ROPS MAIN FRAME

1

LOWER ROPS KIT NLA - W/Ref. 2-6, Order components

2

102491501CC

WASHER m10

3

102617201CC

NUT flg, m10x1.5

4

102718101CC

WASHER m10

5

102491301CC

BOLT Was 102732301CC - m10x100 - B

6

103361701CC

SUPPORT, SEAT Was 103244501CC - A

7

SEAT BELT ASSM. RESTYLE NLA - W/Ref. 8-12, Order components

8

103529701CC

BELT, SEAT buckle, w/sleeve - Was 102447601CC - A

9

103529801CC

RETRACTOR, BELT SEAT Was 102447602CC - A

10

102620301CC

FLANGE, M12X1.75

11

102671201CC

SCREW m12x1.75x30

12

103806401CC

BOLT Was 103245101CC - A
