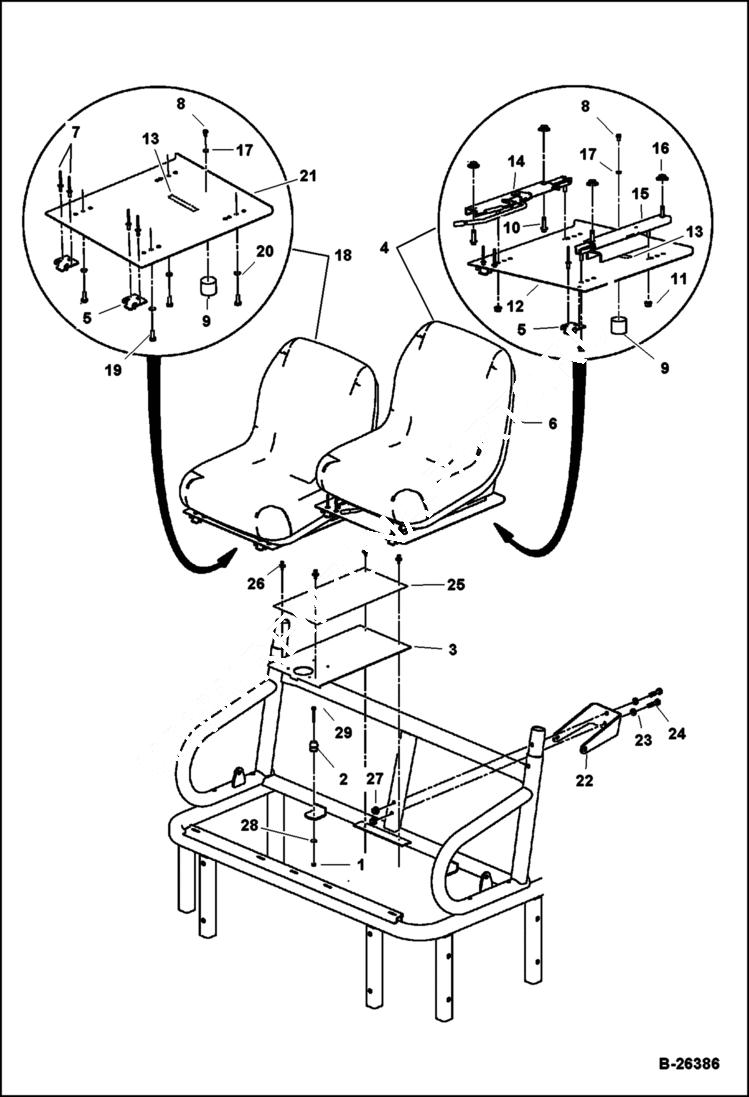

Запчасти Bobcat 2200 BUCKET SEATS (Black & Gray) MAIN FRAME

1

101887601CC

NUT

2

102059001CC

BASE

3

102442001CC

PAN CENTER CLOSEOUT

4

102473701CC

SEAT ASSY, GRAY Gray - adjustable - W/Ref. 5-17

4

SEAT ASSY, BLACK NLA - Black - adjustable- W/Ref. 5-17 - Order components - Was 103218901CC - A

5

1011652CC

PLATE

6

103267001CC

BUCKET SEAT Gray - Was 10206501CC - A

6

103267002CC

BUCKET SEAT (BLACK) Black

6

COVER, SEAT VINYL NLA - covers both seats - gray W/pewter 4X4 embroidery - Was AM1245701CC - A

7

102047001CC

RIVET

8

102059401CC

SCREW

9

102061101CC

CUP

10

102298130CC

BOLT

11

102298401CC

NUT

12

102456001CC

PAN SEAT DRIVER ASM

13

102458901CC

DECAL WARNING hot surface

14

102473501CC

ADJUSTER FORE/AFT

15

102473601CC

ADJUSTER SLIDER

16

102475901CC

SPACER

17

451CC

WASHER - LOCK

18

BUCKET SEAT ASSM. NLA - nonadjustable - W/Ref. 5-9, 13, 17 & 20-22 - Order components

19

1012830CC

SCREW

20

1013734CC

WASHER - LOCK

21

102023703CC

PAN SEAT PASSENGER

22

102670601CC

BRACKET

23

102718101CC

WASHER M10

24

102732401CC

BOLT m10x45

25

102763701CC

CENTER CONSOLE

26

102967901CC

PLASTIC RIVET 1/4 in. tuflok, rivet

27

103216401CC

FLG, M10X1.5

28

332CC

WASHER

29

96742515CC

SCREW m6x1x45
