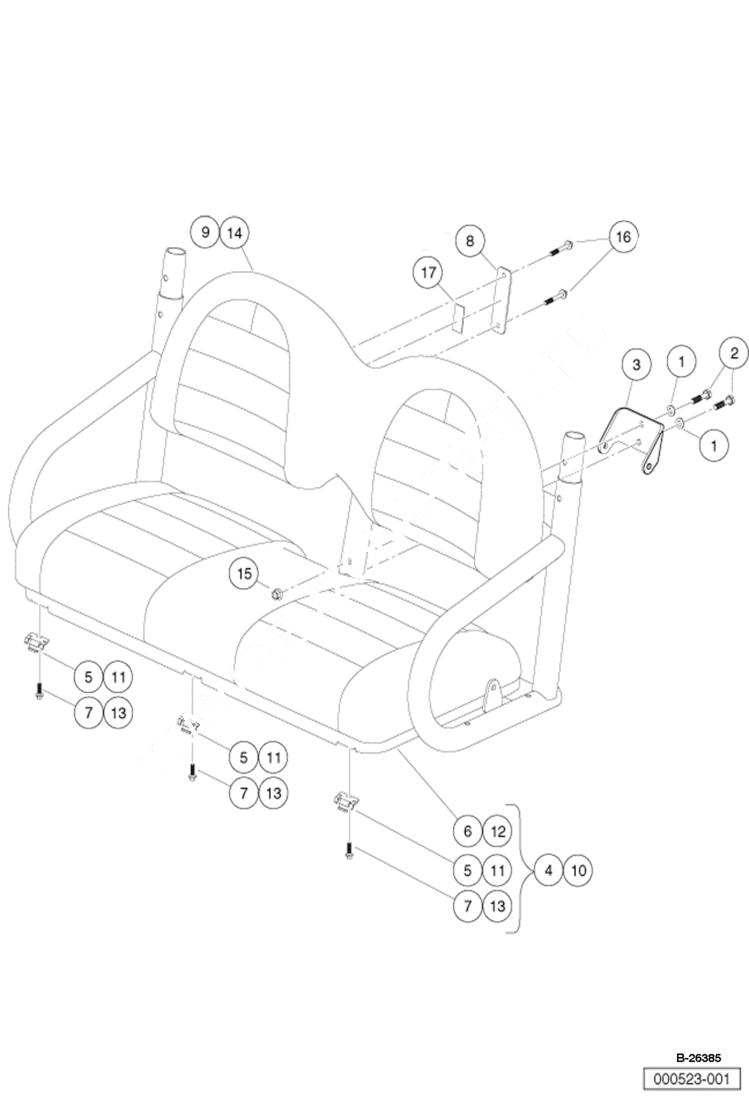

Запчасти Bobcat 2200 BENCH SEAT MAIN FRAME

1

102718101CC

WASHER

2

102732401CC

BOLT m10x45

3

102759901CC

BRACKET seat belt

4

SEAT BOTTOM, BENCH GRAY See Illustration BENCH SEAT CONVERSION/ NA2407 NLA - assy - W/Ref. 5-7 - Order 103647201CC gray bench seat kit & 103643901CC bench seat conversion kit - Was 102879201CC - A

5

1011652CC

PLATE

6

BENCH See Illustration BENCH SEAT CONVERSION/ NA2407 NLA - Order 103647201CC gray bench seat kit . - Was 102879201CC - A

7

103262201CC

FLG, M8X25, LOCTITE

8

102879401CC

BRACKET seat back, AWD

9

SEAT BACK See Illustration BENCH SEAT CONVERSION/ NA2407 NLA - Order 103647201CC gray bench seat kit & 103643901CC conversion kit - Was 102912301CC - A

9

COVER, SEAT VINYL NLA - Order AM1264501CC cover seat vinyl - covers both back and seat - gray W/red embroidery 4X4 - Was AM1245601CC - A

9

AM1246501CC

COVER, SEAT VINYL covers both back and seat - gray W/pewter embroidery 4X4

10

SEAT BOTTOM, BENCH BLACK See Illustration BENCH SEAT CONVERSION/ NA2407 NLA - assy - W/Ref. 11-13 - Order 103647202CC kit, bench seat black & 103643901CC kit, seat, bench conversion - Was 103181001CC

11

1011652CC

PLATE

12

BENCH See Illustration BENCH SEAT CONVERSION/ NA2407 NLA - Order 103647202CC black bench seat kit - Was 103181001CC - A

13

103262201CC

FLG, M8X25, LOCTITE

14

BENCH SEAT BACK, BLACK See Illustration BENCH SEAT CONVERSION/ NA2407 NLA - Order 103647202CC black bench seat kit & 103643901CC conversion kit - Was 103181101CC - A

15

103216401CC

FLG, M10X1.5

16

103262601CC

BOLT m8x55 - W/threadlocker

17

DOUBLE SIDED NLA - Order 102185401CC double sided tape - Was 1032913CC - A
