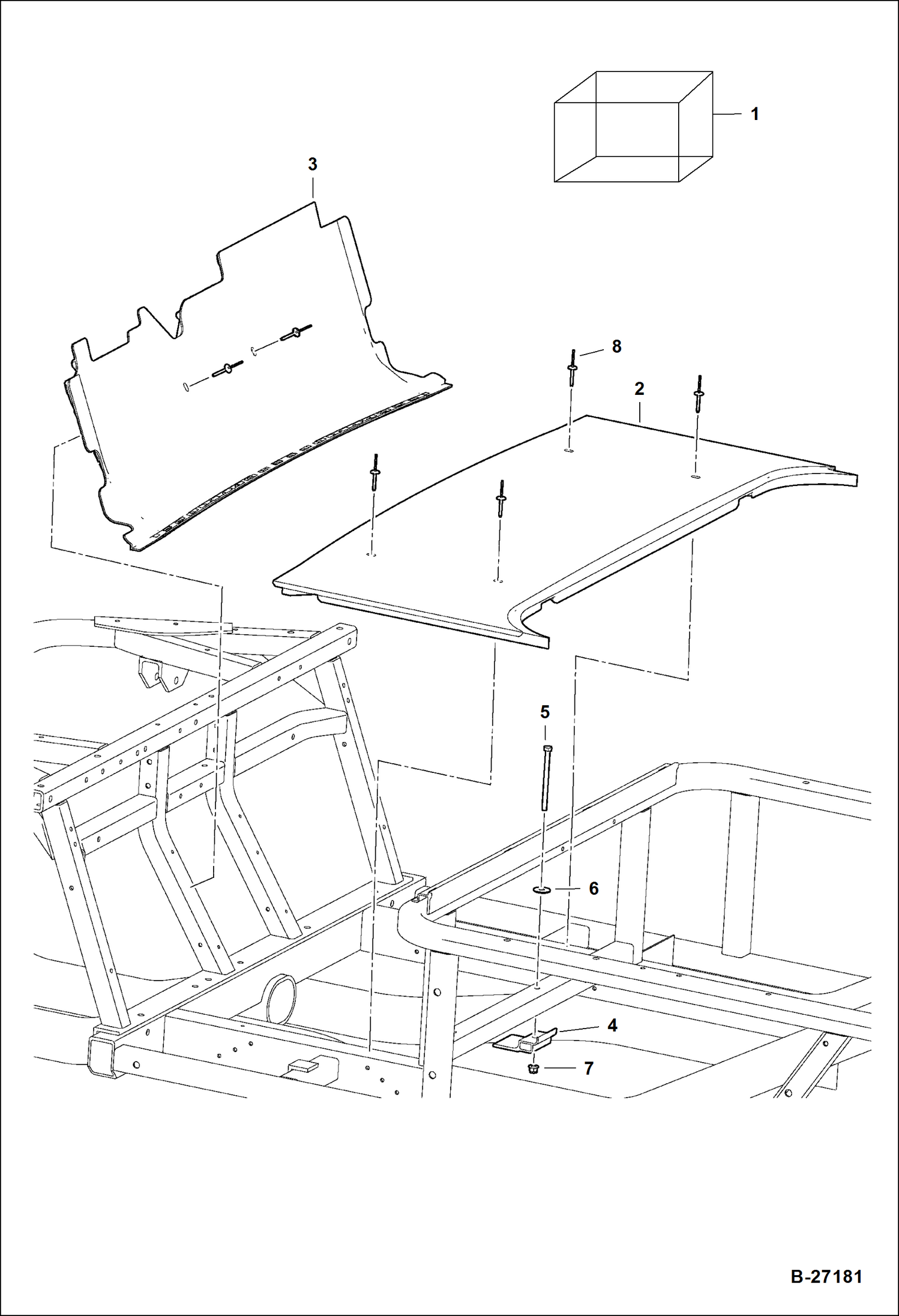

Запчасти Bobcat 2200 FLOORBOARDS MAIN FRAME

1

KIT, FLOORBOARD NLA - composite diamond tread W/O floormat - includes Ref. 2-8 - Order components - Was 102868501CC - A

2

103212901CC

FLOORBOARD, LOWER See Illustration FLOOR MAT/ B26384 aluminum - Use W/102895701CC floor mat

2

103319601CC

FLOORBOARD, LOWER composite diamond tread W/O floormat

3

AM1278901CC

KIT, FLOORBOARD composite - Use W/ 102895701CC floor mat - Was 103189401CC - A

3

103319701CC

FLOORBOARD, UPPER composite diamond tread W/O floormat

4

BRACKET, FLOORBOARD NLA - Was 103417401CC - A

5

103423701CC

BOLT

6

1011578CC

WASHER, 5/16 TYPE B FLAT

7

102618601CC

NUT locknut

8

103400001CC

RIVET, POP
