Запчасти Bobcat 2200 INJECTION PUMP Tier II 2353 11569 & Above POWER UNIT

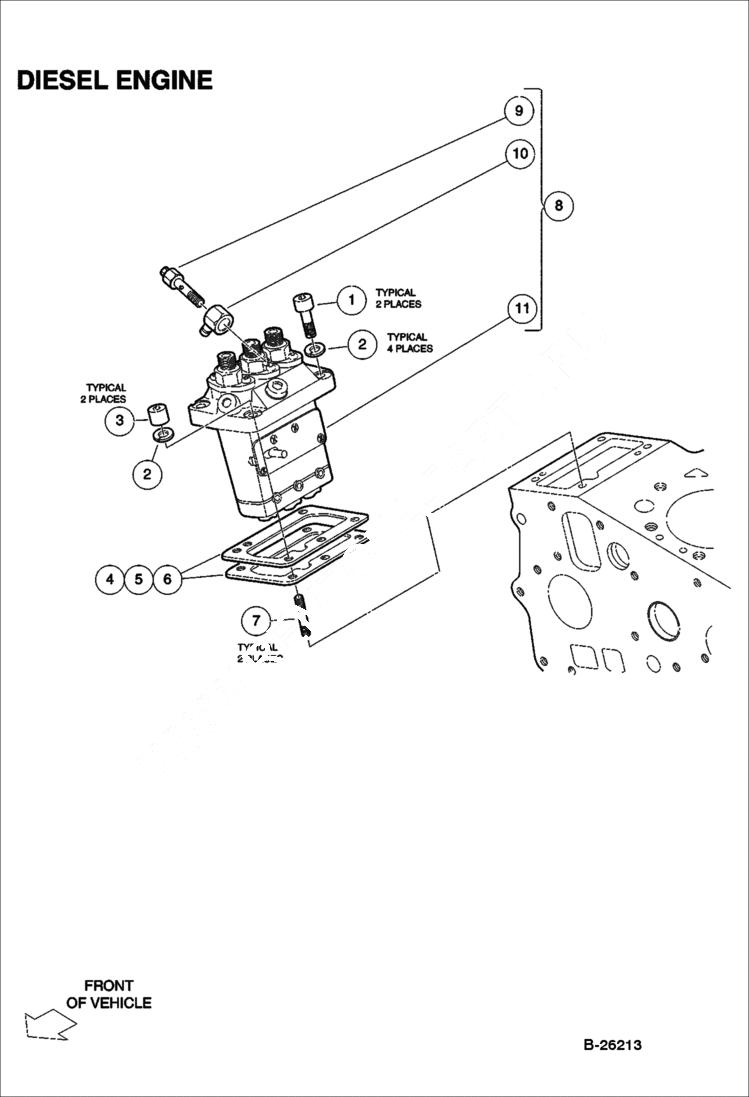

Схема запчастей Bobcat 2200 - INJECTION PUMP Tier II 2353 11569 & Above POWER UNIT

Артикул

Название

Примечание

Количество

1

6657417

BOLT Was 102640501CC - A

2

6667419

WASHER Was 102640601CC - A

3

6657461

NUT Was 102640701CC - A

4

6670433

SHIM 0.20 mm - Was 102640901CC - A

5

6672391

SHIM 0.25 mm - Was 6670434 - A

6

6670777

SHIM 0.30 mm - Was 102641101CC - A

7

6657458

STUD Was 102641201CC - A

8

102800101CC

FUEL INJECTION PUMP assy. W/Ref. 9-11

9

SCREW N/A - Order Ref. 8

10

6670436

FITTING Was 102640401CC - A

11

PUMP N/A - Order Ref. 8

Выбрано товаров: 11
