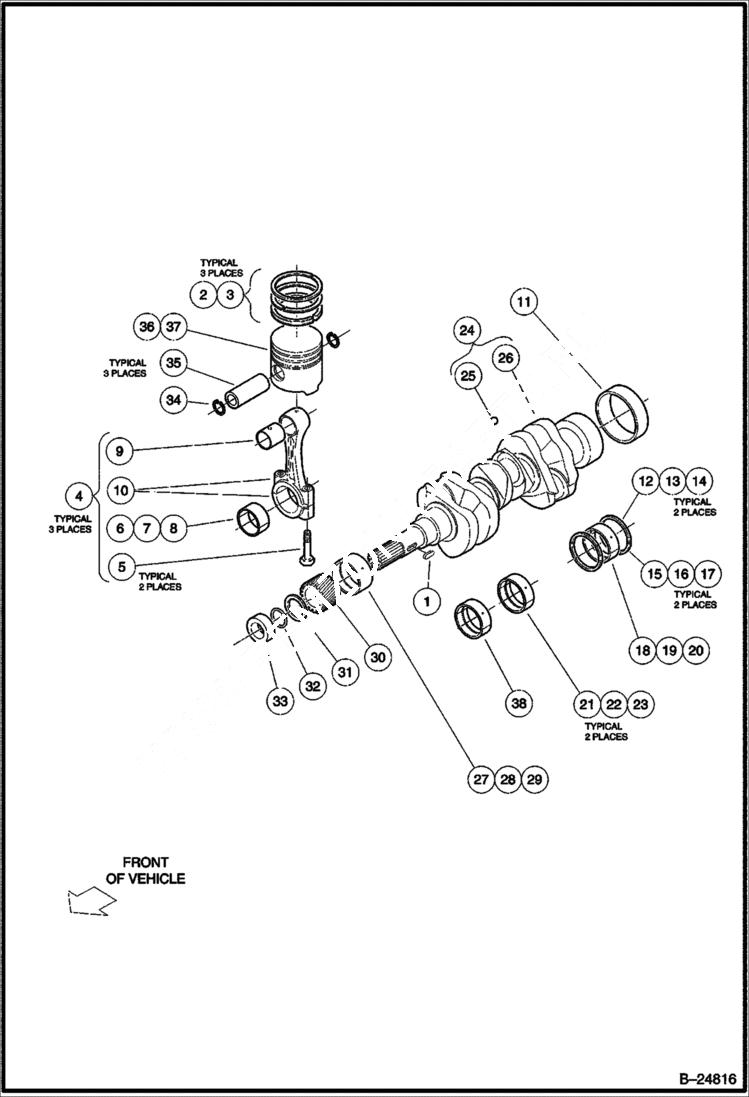

Запчасти Bobcat 2200 PISTON & CRANKSHAFT Diesel 2353 11567 & Below POWER UNIT

1

3974226

KEY Was 102604401CC - A

2

6670395

RING ASSY std.- Was 102607601CC - A

3

6670396

RING ASSY +.025 - Was 102607602CC - A

4

102607801CC

CONNECTING ROD W/Ref. 5-10

5

6670400

BOLT Was 102607901CC - A

6

6670401

BEARING std.- Was 102630701CC - A

7

6670402

BEARING -.020 - Was 102630702CC - A

8

6670403

BEARING -.040 - Was 102630703CC - A

9

102732201CC

BUSHING

10

ROD N/A - Order Ref. 4

11

3986830

SLEEVE Was 102608101CC - A

12

6652636

WASHER std. - Was 102608801CC - A

13

6513613

WASHER +.020 - Was 102608802CC - A

14

6513615

WASHER +.040 - Was 102608803CC - A

15

7000492

WASHER, THRUST SIDE Std - 1/2 thrust washer - Was 6652637 - A

16

6698149

WASHER, THRUST SIDE thrust - (+0.2 mm) 1/2 thrust washer - Was 6513614 - A

17

6513615

WASHER +.040 - Was 102608806CC - A

18

7023260

BEARING, ENG CRANKSHAFT std - rear - Was 6670412 - A

19

6660336

BEARING rear - -.020 - Was 102609002CC - A

20

6660337

BEARING rear - -.040 - Was 102609003CC - A

21

6670409

BEARING middle - std. - Was 102609801CC - A

22

6670410

BEARING middle - +.020 - Was 102609802CC - A

23

6670411

BEARING middle - +.040. - Was 102609803CC - A

24

6683012

CRANKSHAFT W/Ref. 25 & 26 - Was 102610001CC - A

25

6683013

BALL Was 102608001CC - A

26

CRANKSHAFT N/A - Order Ref. 24

27

6670406

BEARING front std. - Was 10263001CC - A

28

6670407

BEARING front - -.020 - Was 102630002CC - A

29

6670408

BEARING front - -.040 - Was 102630003CC - A

30

6670405

GEAR Was 102630101CC - A

31

6670414

OIL SLINGER Was 102630201CC - A

32

6683014

SEAL Was 102630301CC - A

33

6670413

COLLAR Was 102630401CC - A

34

3974216

RING Was 102630901CC - A

35

6670397

PIN Was 102631001CC - A

36

7000376

PISTON, ENG std. - piston only - (16851-2111) - Was 6670393 - A

37

6670394

PISTON +0.25 - Was 102728102CC - A

38

102728201CC

BEARING
