Запчасти Bobcat 2200 INSTRUMENT PANEL Diesel ELECTRICAL SYSTEM

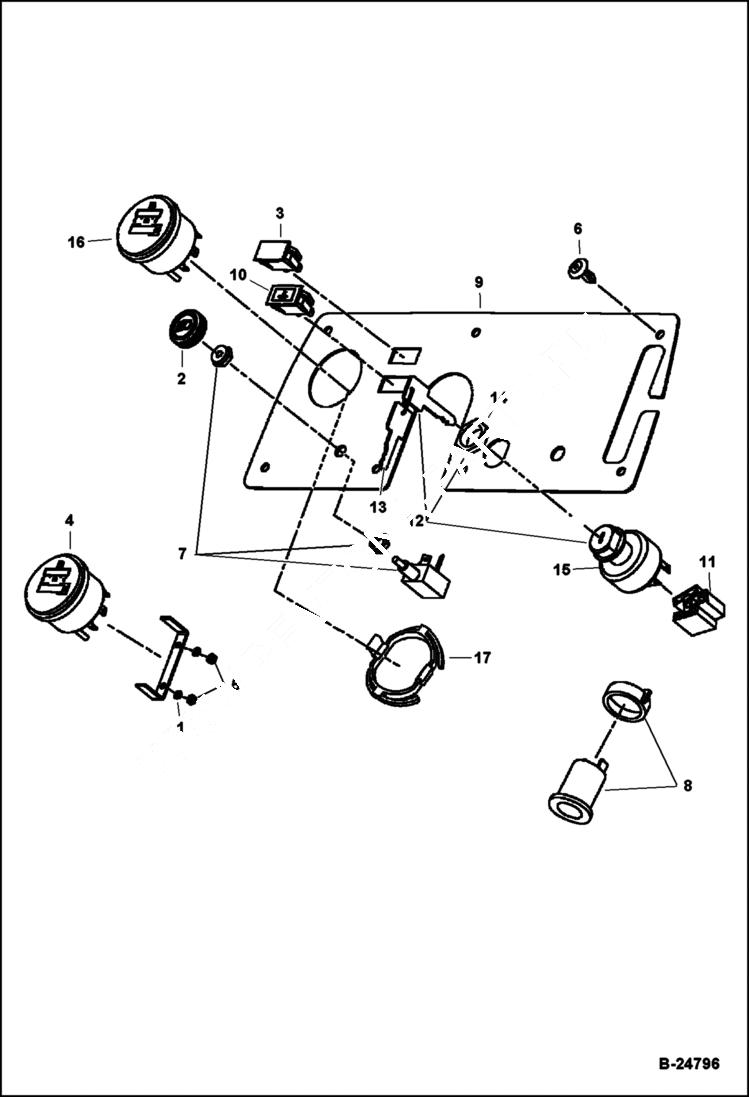

Схема запчастей Bobcat 2200 - INSTRUMENT PANEL Diesel ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

WASHER NLA - Was 1012986CC - A

2

1013857CC

KNOB

3

1016630CC

LIGHT oil warning/indicator

4

103390801CC

GAUGE, FUEL 6 pin - Was 101990703CC - A

5

101991101CC

NUT

6

102967901CC

PLASTIC RIVET Was 102025701CC - A

7

102051901CC

SWITCH

8

102198001CC

ACCESSORY RECEPTACLE

9

102739902CC

PANEL INSTR DIESEL Was 102375102CC - A

10

102375401CC

LIGHT INDICATOR ENG TEMP

11

CONNECTOR N/A

12

102457301CC

KEY SWITCH

13

102731701CC

KEY SET Diesel

14

NUT N/A

15

SWITCH N/A

16

103348101CC

GUAGE, FUEL/HOUR 5 pin

17

103348201CC

CLIP required to mount 103348101CC gauge

Выбрано товаров: 17
