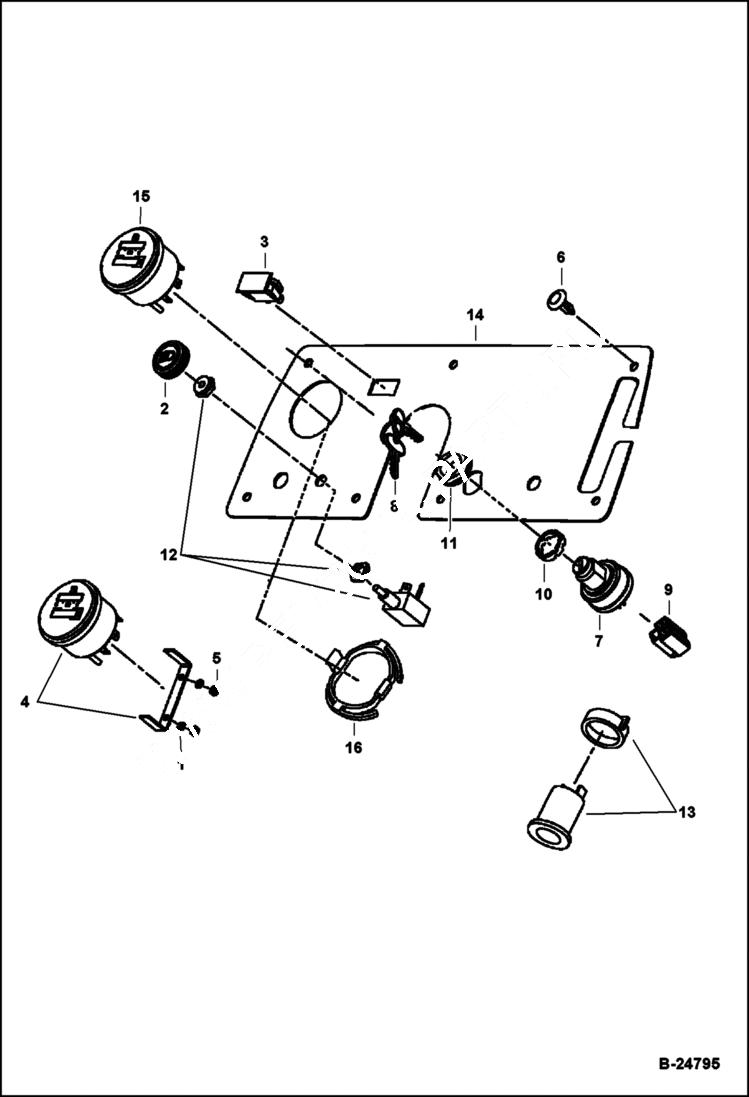

Запчасти Bobcat 2200 INSTRUMENT PANEL Gasoline ELECTRICAL SYSTEM

1

WASHER NLA - Was 1012986CC - A

2

1013857CC

KNOB

3

1016630CC

LIGHT oil warning/indicator

4

103390801CC

GAUGE, FUEL 6 pin - Was 101990703CC - A

5

101991101CC

NUT

6

102967901CC

PLASTIC RIVET Was 102025701CC - A

7

102044702CC

SWITCH

8

102044801CC

KEY SET

9

CONNECTOR N/A

10

102051601CC

SPACER

11

102051701CC

NUT

12

102051901CC

SWITCH

13

102198001CC

ACCESSORY RECEPTACLE

14

102739902CC

PANEL INSTR DIESEL See Illustration INSTRUMENT PANEL/ B24796 - gas - Was 1102739901CC - A

15

103348101CC

GUAGE, FUEL/HOUR 5 pin

16

103348201CC

CLIP required to mount 103348101CC gauge
