Запчасти Bobcat 2100S WINCH KIT ACCESSORIES & OPTIONS

1

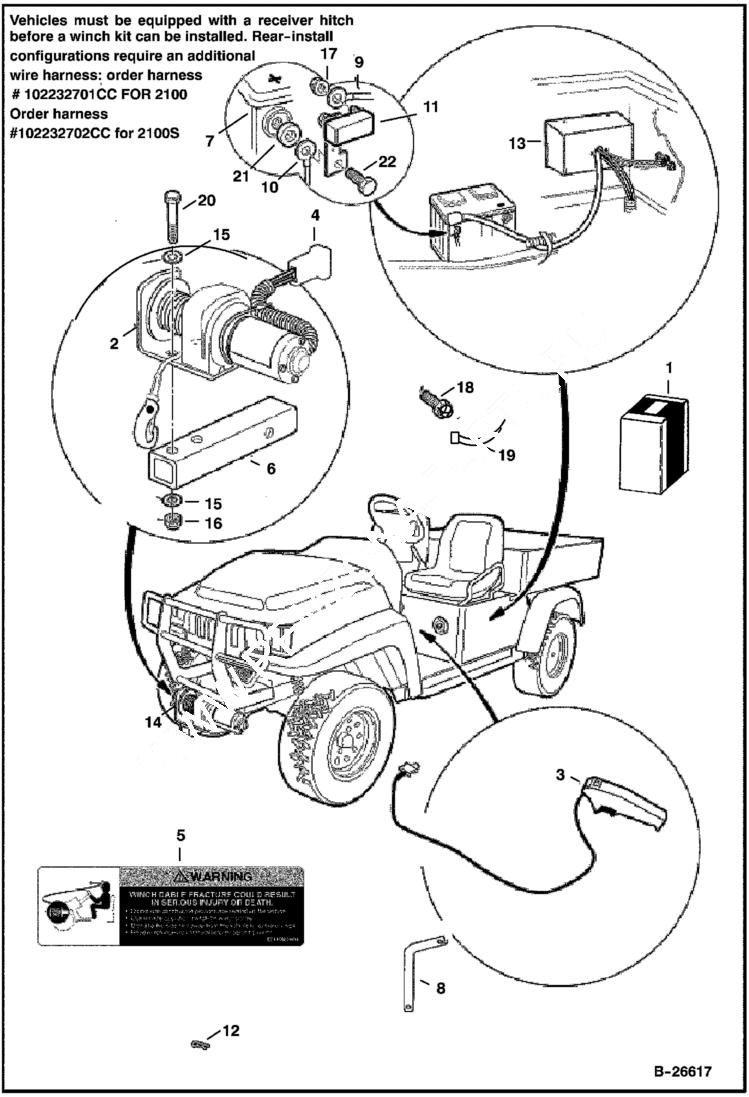

WINCH KIT See Illustration WINCH KIT/ B26617 - NLA - Order 103253101CC winch kit - W/Ref. 2-22- vehicles must be equipped with a receiver hitch before a winch kit can be installed. Rear-install config

2

NLA - Was 102231301CC - A

3

102231401CC

WINCH REMOTE

4

102231501CC

WIRE HARNESS

5

102231601CC

DECAL

6

TUBE NLA - Was 102231701CC - A

7

TERMINAL MOUNTING BRACKET NLA - Was 102231801CC - A

8

HITCH PIN NLA - Order 102718301CC hitch pin - Was 102231901CC - A

9

102232001CC

WIRE ASM. 8 ga. red wire -2100

10

WIRE ASM. NLA - 8 gauge red wire- 2100S - Was 102232002CC - A

11

102232101CC

CIRCUIT BREAKER

12

HITCH PIN CLIP NLA - included in 102718301CC hitch pin - Was 102232201CC - A

13

102232301CC

SOLENOID CONTROL PACK

14

HANDSAVER BAR NSS- Order Ref. 1

15

1241CC

WASHER

16

7473CC

NUT

17

8233CC

NUT

18

8248CC

SCREW

19

8990CC

TIE STRAP

20

17C548

BOLT

21

1011229CC

LOCKNUT, #6-32 WHIZ

22

1011557CC

SCREW
