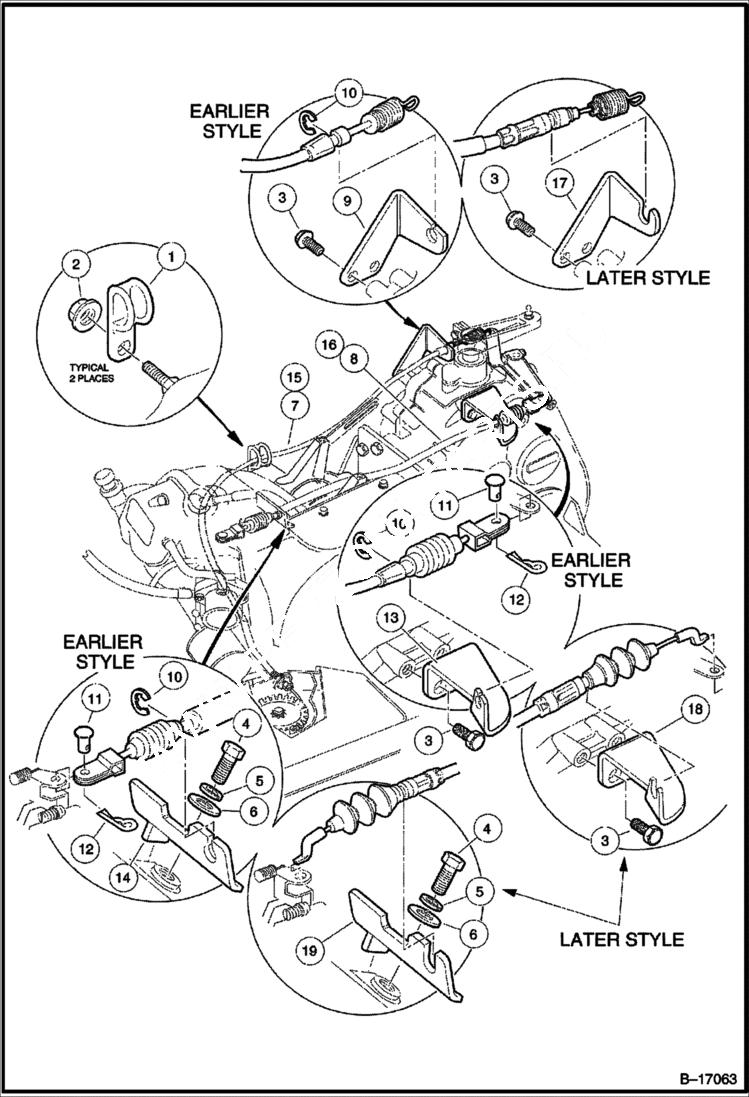

Запчасти Bobcat 2100S GOVERNOR & ACCELERATOR CABLES POWER UNIT

1

1013700CC

CLAMP

2

1016546CC

NUT

3

1012285CC

SCREW, 1/4-20 X .625 HX TYP TT

4

1012830CC

SCREW Was 101903501CC - A

5

7174CC

Washer

6

1011697CC

WASHER, 5/16 FLAT

7

102278401CC

CABLE accelerator - early style uses e-ring clip

8

101832402CC

CABLE governor - early style uses e-ring clip

9

101832301CC

BRACKET accelerator support

10

1016202CC

E-RING

11

1015408CC

PIN clevis

12

1014413CC

PIN cotter

13

101832201CC

BRACKET support - early style uses e-ring clip

14

1015845CC

BRACKET governor - early style uses e-ring clip

15

102336101CC

CABLE accelerator - later style snap in

16

102336001CC

CABLE governor - later style snap in

17

101832302CC

BRACKET accelerator support - later style snap in

18

101832202CC

BRACKET support - later style snap in

19

101584502CC

BRACKET governor cable - later style snap in
