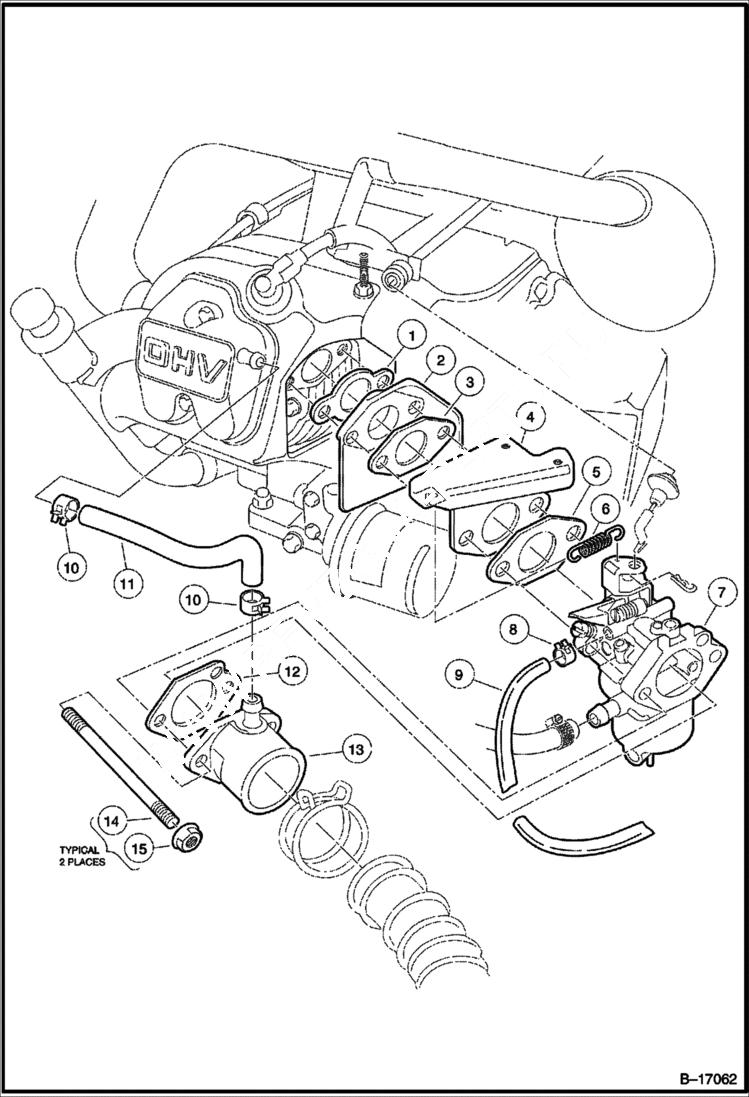

Запчасти Bobcat 2100S CARBURETOR INSTALLATION POWER UNIT

1

1016440CC

GASKET insulator

2

101648102CC

INSULATOR carburetor

3

101973401CC

GASKET

4

1016444CC

BRACKET throttle

5

1016441CC

GASKET

6

1016582CC

SPRING throttle return

7

102270701CC

CARBURETOR

8

1013746CC

CLAMP

9

1015137CC

HOSE bulk - Sold Per Foot

10

1017466CC

CLAMP

11

1016572CC

TUBE

12

1016438CC

GASKET

13

1016480CC

PIPE intake

14

101649002CC

SCREW

15

1016547CC

NUT
