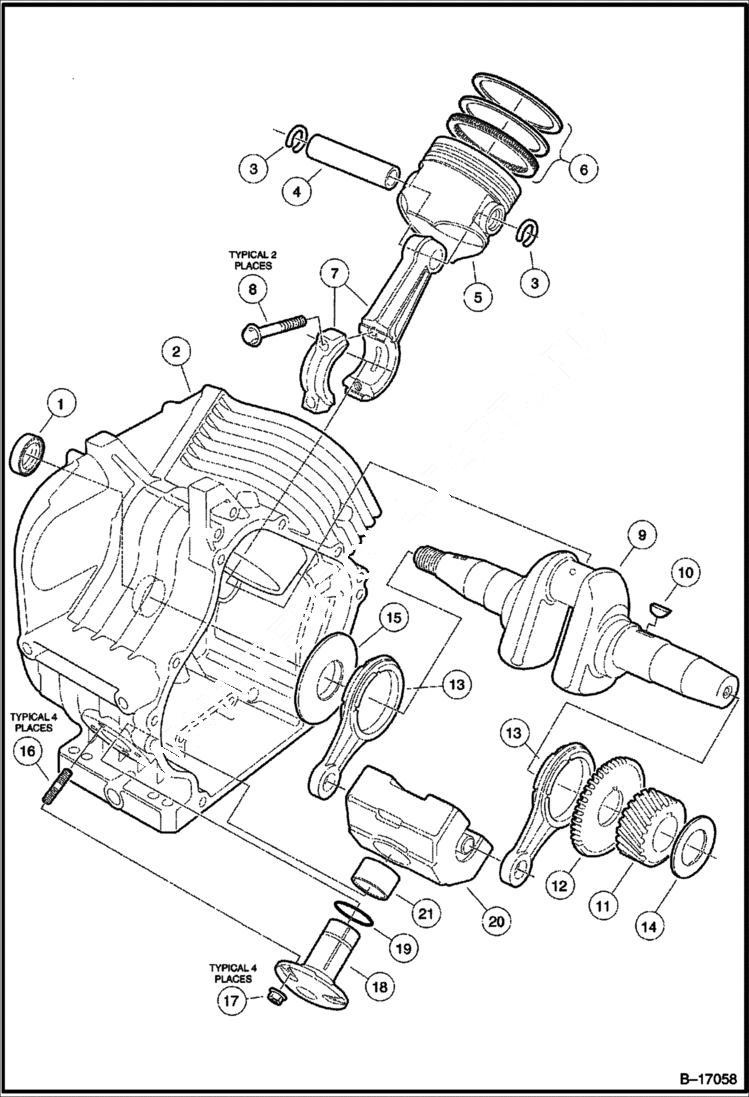

Запчасти Bobcat 2100S CRANKCASE & CRANKSHAFT (FE400 Engine) POWER UNIT

1

1017503CC

OIL SEAL

2

102271501CC

CRANKCASE

3

1017502CC

SNAP RING

4

1017450CC

PIN piston

5

102270201CC

PISTON standard

6

102270301CC

RING SET standard

7

101745701CC

CONNECTING ROD standard - Includes 2 or Ref. 8

7

101745702CC

CONNECTING ROD .50 mm undersized - Includes 2 or Ref. 8

8

102272201CC

BOLT

9

102270401CC

CRANKSHAFT left hand threads - W/Ref. 10-12

10

1016562CC

KEY

11

102271901CC

GEAR helical

12

GEAR NLA - spur - Order 102270401CC - Was 102271801CC - A

13

1017471CC

ROD connecting

14

101773301CC

SHIM 1.18 mm

14

101773302CC

SHIM 1.25 mm

14

101773303CC

SHIM 1.32 mm

14

101773304CC

SHIM 1.39 mm

14

101773305CC

SHIM 1.46 mm

14

101773306CC

SHIM 1.53 mm

14

101773307CC

SHIM 1.60 mm

14

101773308CC

SHIM 1.67 mm

14

101773309CC

SHIM 1.74 mm

14

101773310CC

SHIM 1.11 mm

14

101773311CC

SHIM 1.81 mm

15

1017501CC

SPACER

16

1016541CC

BOLT

17

1016547CC

NUT

18

1016470CC

SHAFT

19

1016571CC

O-RING

20

1017453CC

WEIGHT counterbalance - W/Ref. 21 - Was 102270501CC - A

21

1017510CC

BEARING
