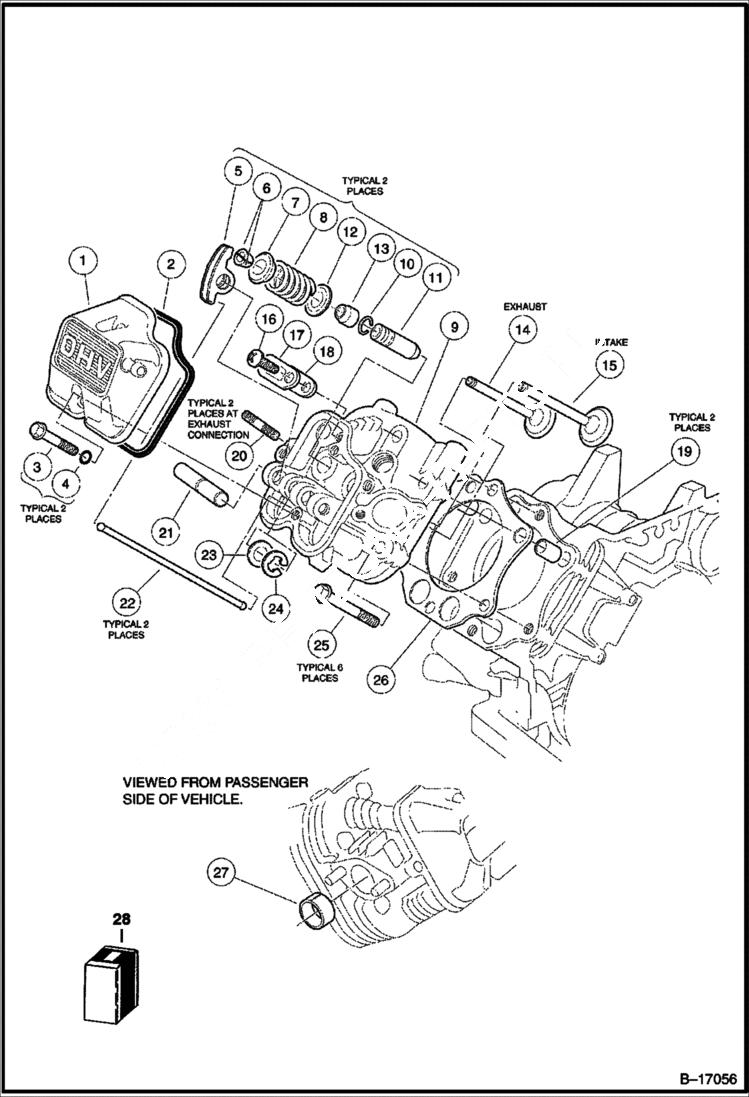

Запчасти Bobcat 2100S CYLINDER HEAD (FE400 Engine) POWER UNIT

1

102753401CC

CASE rocker - Was 1016442CC - A

2

1016436CC

GASKET rocker case

3

1016583CC

BOLT

4

1016569CC

O-RING

5

1017446CC

ROCKER ARM

6

1016450CC

COLLET

7

1016449CC

RETAINER

8

1017473CC

SPRING

9

102270001CC

CYLINDER HEAD assy - W/Ref. 10-11

10

1016560CC

SNAP RING

11

1016519CC

VALVE GUIDE inlet

11

1016518CC

VALVE GUIDE exhaust

12

1016479CC

SEAT spring

13

1016566CC

SEAL valve

14

1017445CC

VALVE exhaust

15

1017444CC

VALVE intake

16

1016544CC

SCREW

17

1016474CC

PLATE

18

1016483CC

VALVE

19

1016563CC

PIN

20

1016489CC

BOLT

21

1016452CC

SHAFT rocker

22

1017454CC

PUSH ROD

23

1016549CC

WASHER

24

1016517CC

CIRCLIP

25

1016458CC

BOLT

26

102269901CC

HEAD GASKET

27

102271101CC

SLEEVE

28

102304901CC

KIT GASKET See Illustration CARBURETOR INSTALLATION/ B17062 See Illustration CRANKCASE, CAMSHAFT & OIL SENSOR/ B17057 See Illustration EXHAUST SYSTEM/ B17065 - includes Ref. 26, Ref 1 from Ill. B17062
