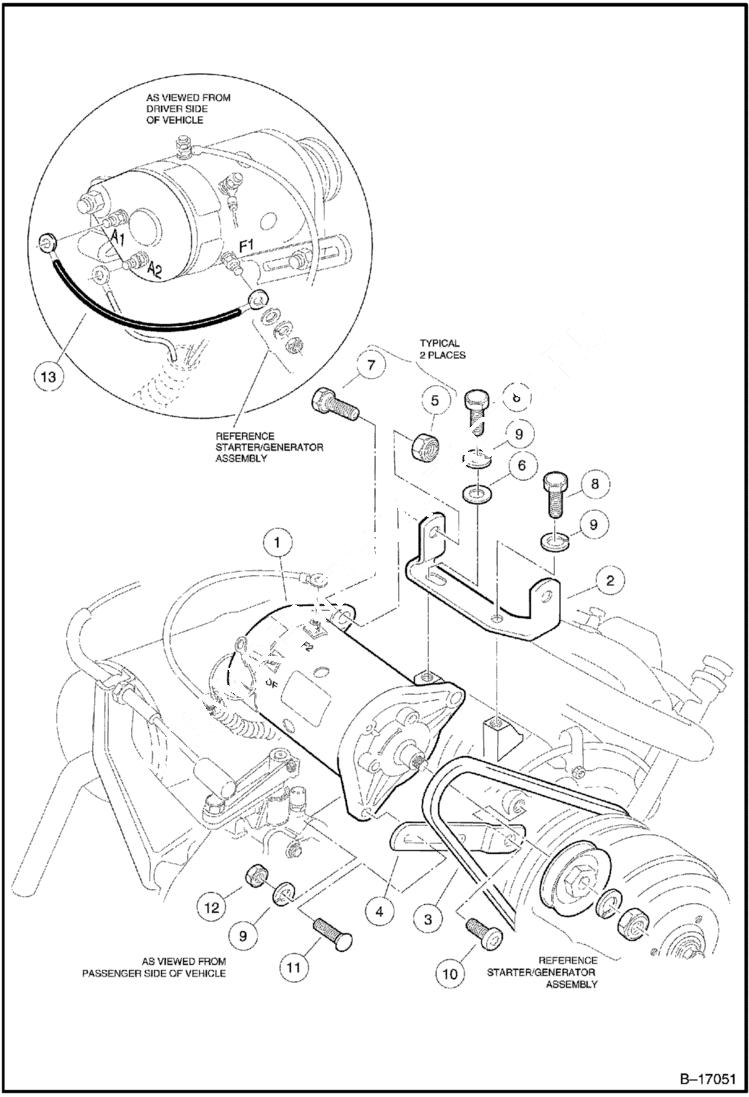

Запчасти Bobcat 2100S STARTER/GENERATOR MOUNTING ELECTRICAL SYSTEM

1

STARTER/GENERATOR NLA - clockwise rotation - 23 amp generator - Order 102628201CC - Was 101833701CC - A

1

103678502CC

STARTER bi-directional - model 114-01-4005B - Was 102628201CC - A

1

103678502CC

STARTER bi-directional - model 114-01-4005B - Was 102628201CC - A

2

101524002CC

BRACKET

3

101916701CC

BELT starter

4

1016883CC

BRACKET

5

8754CC

NUT

6

1015075CC

WASHER

7

705CC

Screw

8

1012830CC

SCREW

9

7174CC

Washer

10

1016074CC

SCREW

11

1015932CC

SCREW

12

1242CC

Nut

13

101837301CC

CABLE
