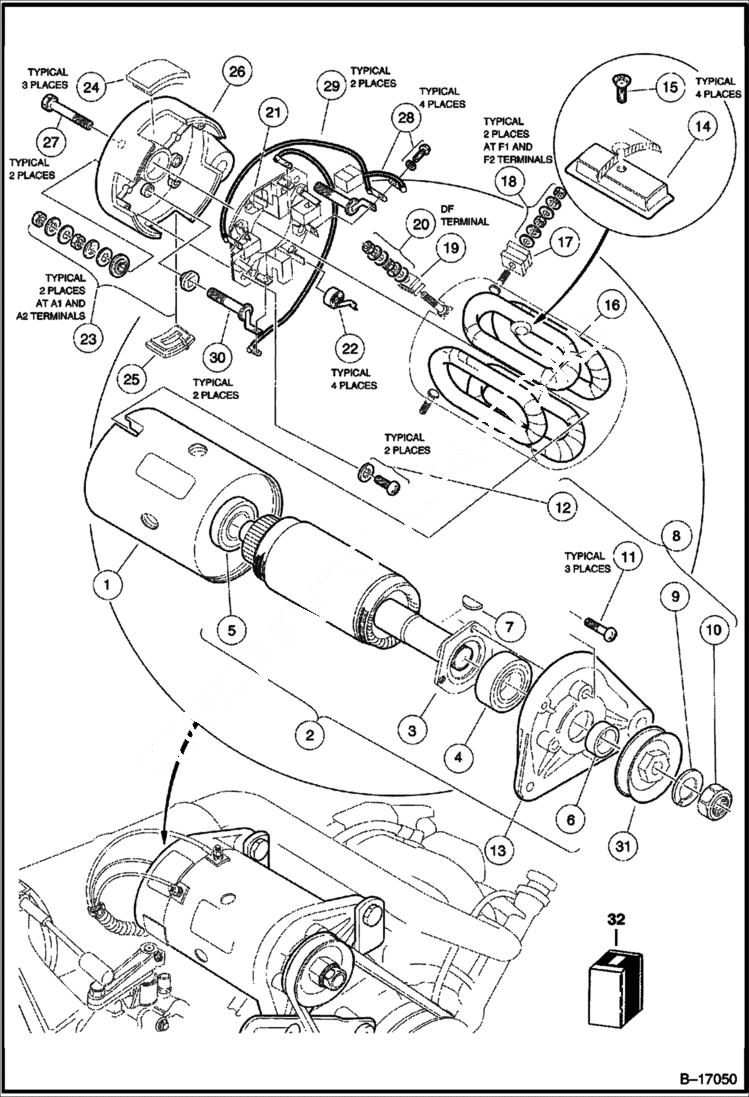

Запчасти Bobcat 2100S STARTER/GENERATOR ASSEMBLY ELECTRICAL SYSTEM

1

101875201CC

HOUSING field coil

2

101875101CC

ARMATURE

3

101875001CC

RETAINER

4

1013001CC

BALL BEARING

5

1013005CC

COMMUTATOR

6

101939901CC

SPACER

7

1013003CC

KEY woodruff

8

101876501CC

KIT Ref. 9-12

9

WASHER NSS - M14

10

NUT NSS - M14 X 2

11

SCREW NSS - M5 X .8 X 18 mm

12

101896501CC

SCREW section

13

101874901CC

END BELL

14

101875301CC

SET pole (set of 4)

15

101875401CC

SCREW pole (set of 4)

16

101875501CC

COIL field

17

101875601CC

INSULATOR F terminal

18

101877601CC

PACKAGE

19

101875701CC

INSULATOR DF terminal

20

101877701CC

PACKAGE

21

101301102CC

HOLDER brush

22

101878101CC

SPRING

23

101876001CC

PACKAGE

24

101876301CC

COVER set of 4 - W/Ref. 25

25

1017653CC

COVER

26

101876402CC

END BELL

27

101879001CC

BOLT

28

101869302CC

BRUSHES set of 4

29

101876202CC

CONNECTOR

30

101875802CC

CONNECTOR set of 2

31

1014289CC

PULLEY

32

STARTER/GENERATOR NLA - clockwise rotation - Ref. 1-30 - 23 amp generator - Order 102628201CC - Was 101833701CC - A

32

103678502CC

STARTER bi-directional rotation - model 114-01-4005B - individual service parts not available - Was 102628201CC - A
