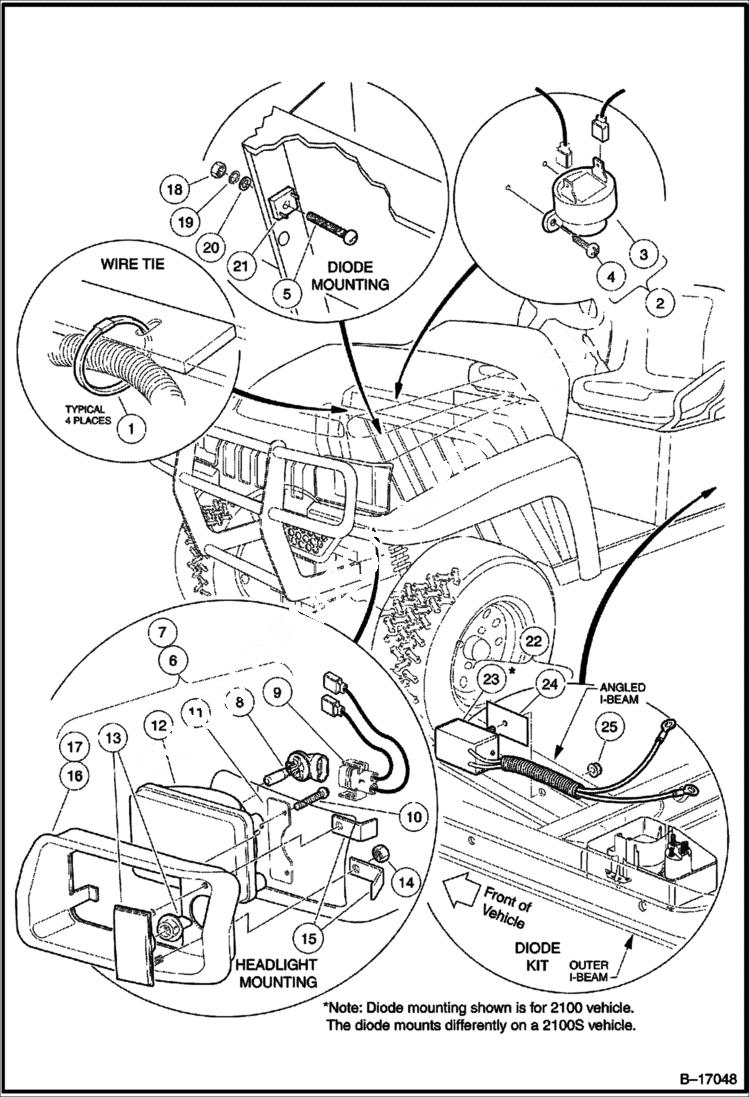

Запчасти Bobcat 2100S ELECTRICAL COMPONENTS (Front Body) ELECTRICAL SYSTEM

1

8639CC

TIE STRAP

2

1016859CC

KIT reverse buzzer - W/Ref. 3-4

3

1016851CC

BUZZER reverse

4

1016849CC

SCREW

5

1010909CC

SCREW

6

101988001CC

HEADLIGHT driver side - Ref. 8-16

7

101988002CC

HEADLIGHT passenger side - Ref. 8-15 & 17

8

101988101CC

BULB

9

101987901CC

HARNESS headlight

10

1013461CC

SCREW

11

1017065CC

RETAINER headlight

12

101988201CC

LENS headlight

13

1017062CC

SIGNAL ASSY turn

14

7893CC

NUT

15

1017064CC

BRACKET

16

1016880CC

BEZEL driver side

17

1016879CC

BEZEL passenger side

18

7893CC

NUT

19

1016CC

WASHER

20

183CC

WASHER

21

1017721CC

DIODE

22

102272501CC

DIODE KIT Ref. 23-25

23

102264001CC

DIODE ASSY

24

102269701CC

PAD thermal

25

101963401CC

NUT
