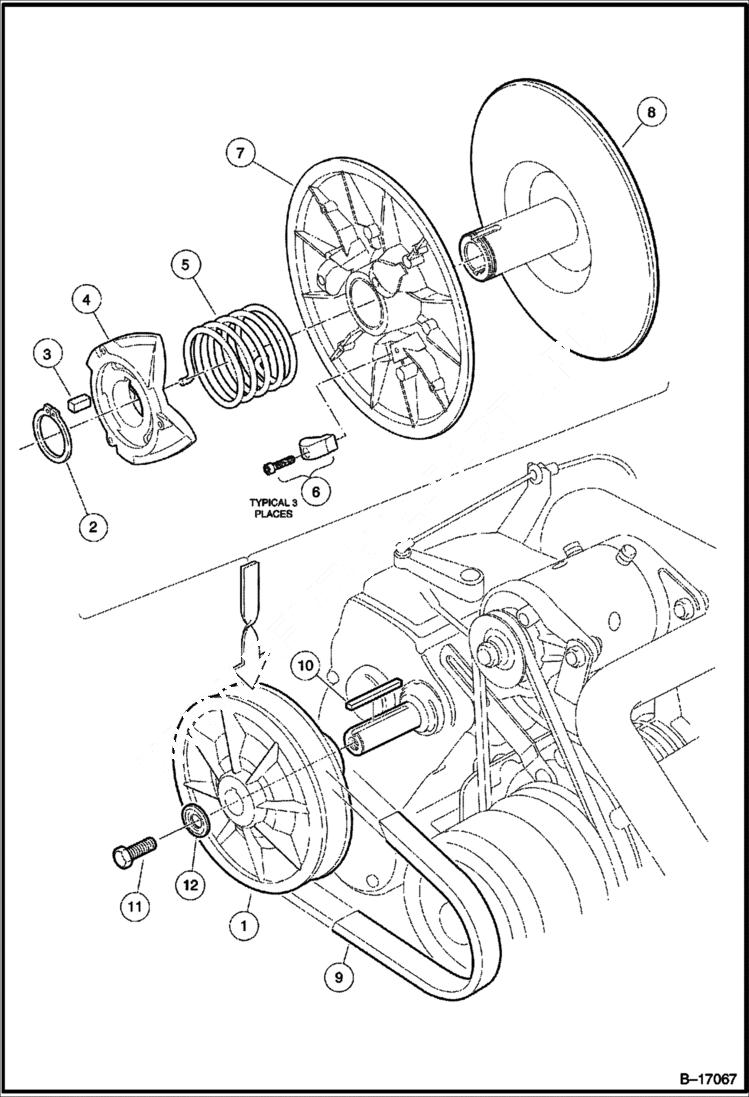

Запчасти Bobcat 2100S DRIVEN CLUTCH DRIVE TRAIN

1

101834001CC

DRIVEN CLUTCH assy - Ref. 2-8

2

1014080CC

RING retaining

3

1014078CC

KEY

4

1017686CC

CAM

5

101836201CC

SPRING green

6

1014454CC

KIT driven clutch bottom

7

1014072CC

ASSEMBLY moveable face w/bushing

8

1014070CC

FACE fixed

9

102267101CC

BELT drive

9

AM10419CC

KIT hardware repair - W/Ref. 10-12

10

101833401CC

KEY square transmission

11

102242101CC

SCREW

12

1017327CC

WASHER
