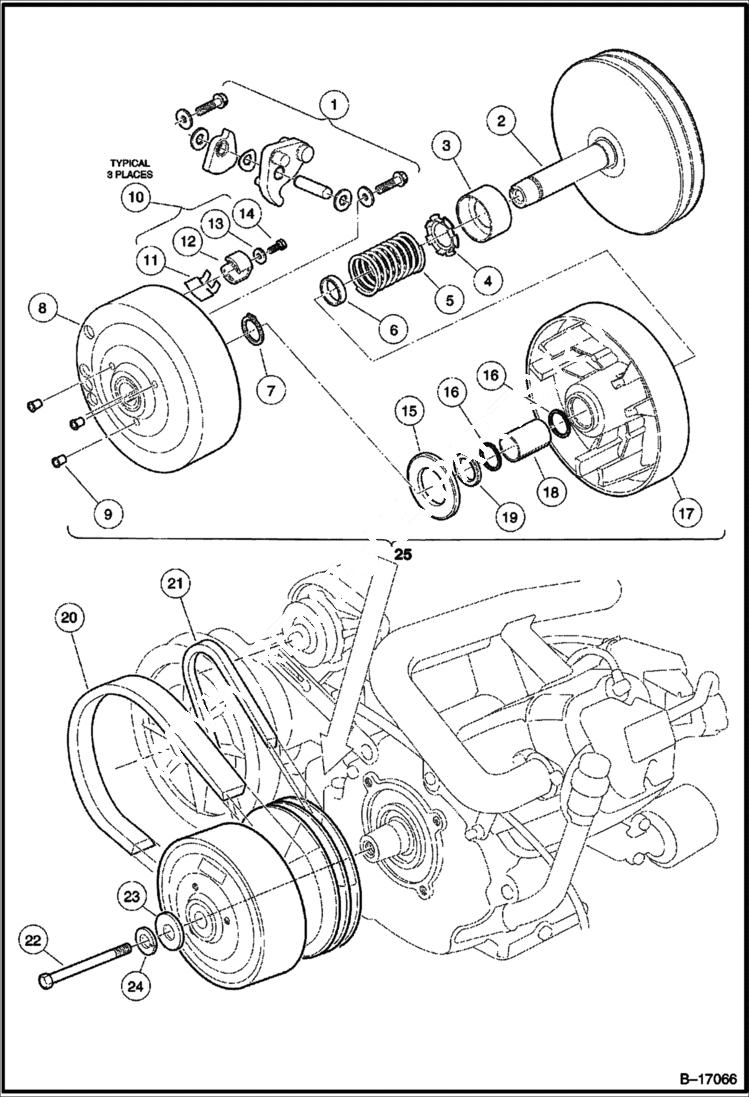

Запчасти Bobcat 2100S DRIVE CLUTCH DRIVE TRAIN

1

1016801CC

KIT drive clutch weight

2

101738302CC

FIXED FACE ASSY fixed face - Was 101738301CC - A

3

1014049CC

BEARING idler

4

1014050CC

RETAINER spring

5

102266201CC

SPRING drive clutch - green

6

1016289CC

SPACER fixed face shaft

7

1014057CC

RING retaining

8

1014059CC

ASSEMBLY drive hub

9

PLUG NSS - drive clutch

10

1014453CC

KIT drive clutch bottom - Ref 11-14

11

1014287CC

SPRING drive bottom

12

1014062CC

DRIVER drive clutch

13

183CC

WASHER

14

8450CC

SCREW

15

1014058CC

WASHER thrust

16

1014056CC

RING spiral back-up

17

1014052CC

ASSEMBLY moveable face - W/Ref. 18-19

18

BUSHING NSS

19

1014055CC

RETAINER

20

102267101CC

BELT drive

21

101916701CC

BELT starter

22

103345701CC

SCREW Was 101916501CC - A

23

808CC

WASHER

24

357CC

Washer

25

101833908CC

DRIVE CLUTCH assy - Ref. 1-19
