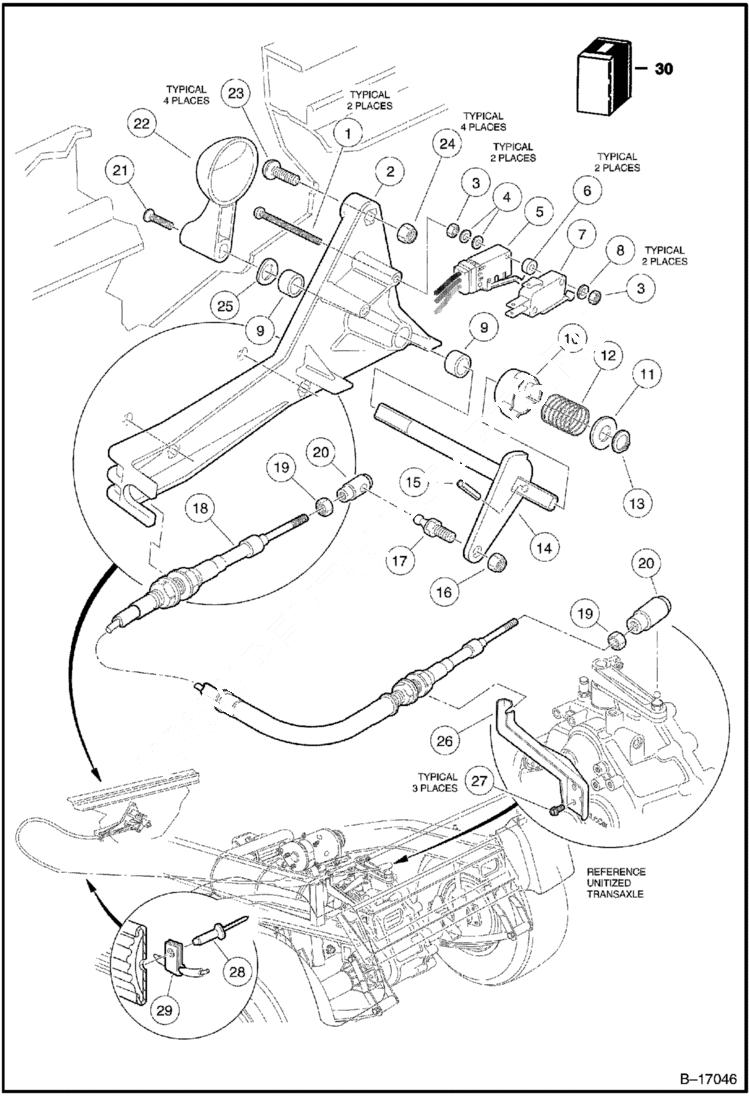

Запчасти Bobcat 2100S FOWARD/REVERSE SHIFTER ASSEMBLY DRIVE TRAIN

1

1012594CC

SCREW

2

1016342CC

BASE forward/reverse shifter

3

8057CC

NUT

4

1012431CC

WASHER

5

101979101CC

SWITCH limit

6

1014727CC

WASHER

7

1014807CC

SWITCH lockout

8

8058CC

WASHER

9

1014145CC

BUSHING

10

1014089CC

KIT neutral lockout cam - W/Ref. 11

11

1014065CC

WASHER

12

1013590CC

SPRING

13

1013589CC

RING

14

1013587CC

BELL CRANK forward/reverse

15

1013591CC

PIN

16

8717CC

NUT

17

1010954CC

BALL STUD

18

101539801CC

CABLE transmission - 1525 mm (60'') long - 2100 - Was 1015409CC - A

18

101539802CC

CABLE, TRANSMISSION transmission - 2235 mm (88'') long - 2100S - Was 101672701CC - A

19

7893CC

NUT

20

1012333CC

BALL JOINT

21

1015064CC

SCREW Was 1013198 CC - B

22

1012987CC

HANDLE forward/reverse

23

8248CC

SCREW

24

8233CC

NUT

25

1016201CC

WASHER

26

101922601CC

BRACKET, SHIFTER transmission cable system - Was 102045901CC - A

27

1012285CC

SCREW, 1/4-20 X .625 HX TYP TT

28

7973CC

RIVET

29

30H21

CLAMP 10 Was 8455CC - A

30

1016947CC

SHIFTER forward/reverse - Ref. 1-17
