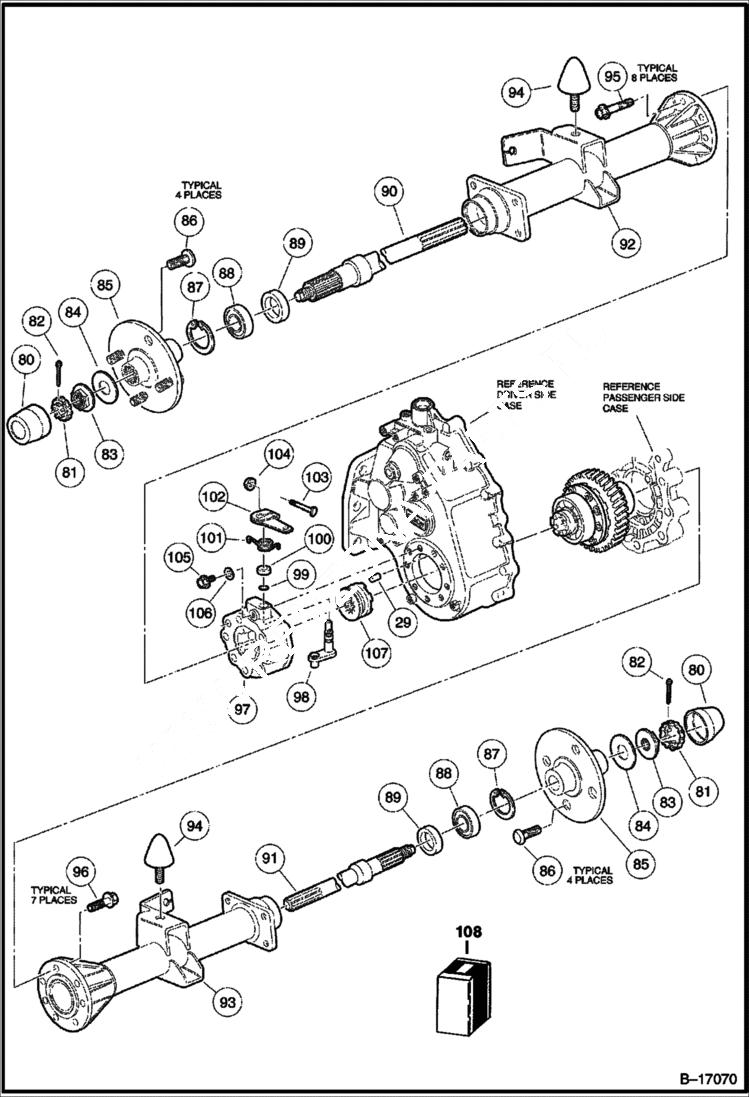

Запчасти Bobcat 2100S DIFFERENTIAL LOCK & AXLES (Unitized Transaxle) DRIVE TRAIN

80

102274101CC

CAP

81

102276001CC

LOCKING CAP

82

101838801CC

COTTER PIN

83

102269201CC

NUT

84

102269301CC

WASHER

85

102269101CC

HUB W/Ref. 86

86

1013787CC

STUD lug

87

1013792CC

RING retaining

88

1011291CC

BEARING outer axle tube

89

102269401CC

SEAL oil

90

102269001CC

AXLE ASSY driver side

91

102268901CC

AXLE ASSY passenger side

92

AXLE TUBE ASSY NLA - driver side - Was 102268801CC - A

93

102268701CC

AXLE TUBE ASSY passenger side

94

102188701CC

STOP axle

95

102019601CC

BOLT

96

102031901CC

BOLT

97

102020101CC

HOUSING differential lock

98

102020201CC

LEVER differential lock

99

102020301CC

O-RING differential lock

100

102020401CC

SPACER differential lock

101

102020501CC

SPRING differential lock

102

102020901CC

ARM differential lock lever

103

1016686CC

BOLT differential lock pinch

104

1016547CC

NUT

105

102022301CC

SCREW

106

102022401CC

WASHER

107

102267701CC

COG differential lock

108

102457401CC

TRANSAXLE, FE 400 14.93 RATIO See Illustration GEAR CASES, BRACKETS & GUARD/ B17068 See Illustration F & R TRANSMISSION & GEAR REDUCTION/ B17069 complete assembly - contains Ref. 15-35 from Ill B17068
