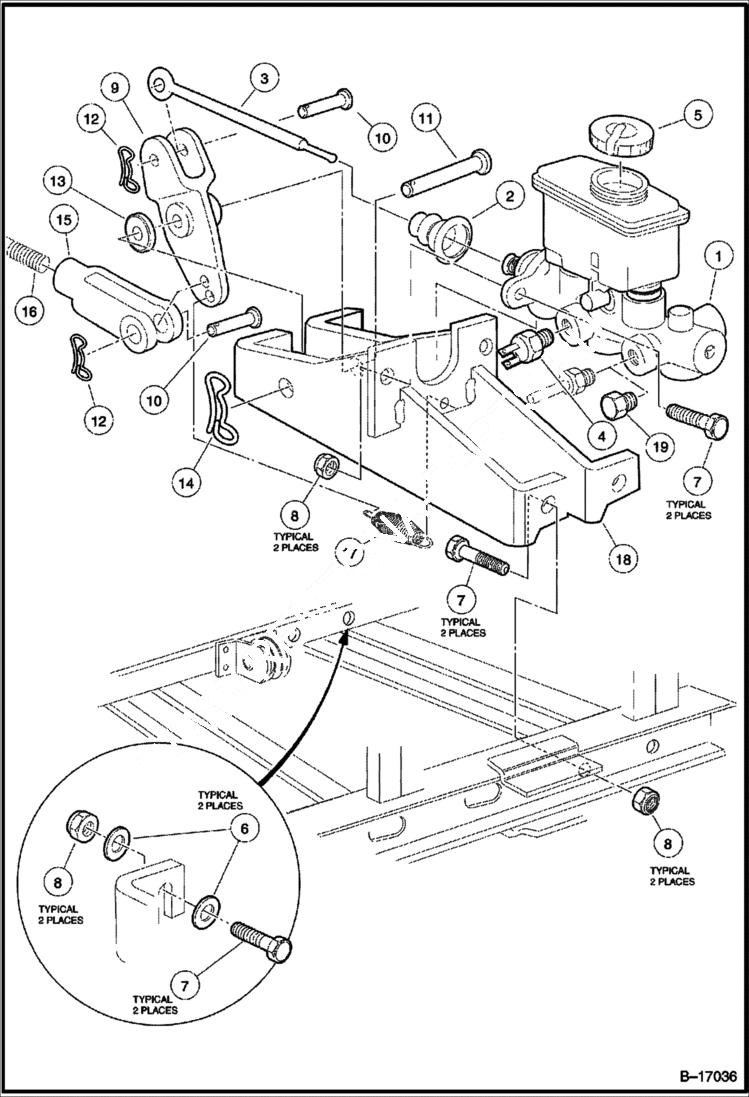

Запчасти Bobcat 2100S MASTER CYLINDER CHASSIS

1

102033201CC

MASTER CYL assy - W/Ref. 2-5

2

102051101CC

BOOT

3

102051201CC

PUSH ROD hydraulic

4

102051301CC

SWITCH pressure

5

102051401CC

CAP filler

6

1241CC

WASHER

7

1010934CC

SCREW

8

7473CC

NUT

9

102054201CC

BELL CRANK Ref. 10-14

10

102323201CC

PIN clevis - Was NSS - A

11

102519001CC

PIN, CLEVIS clevis - Was NSS - A

12

102323101CC

BOW TIE bow tie - Was NSS - A

13

102057801CC

SPACER Was NSS - A

14

102518901CC

PIN bow tie - Was NSS - A

15

101806102CC

CLEVIS rod

16

101953105CC

ROD equalizer

17

1013531CC

SPRING brake pedal return

18

102054401CC

BRACKET

19

102339201CC

PLUG 2100S ONLY
