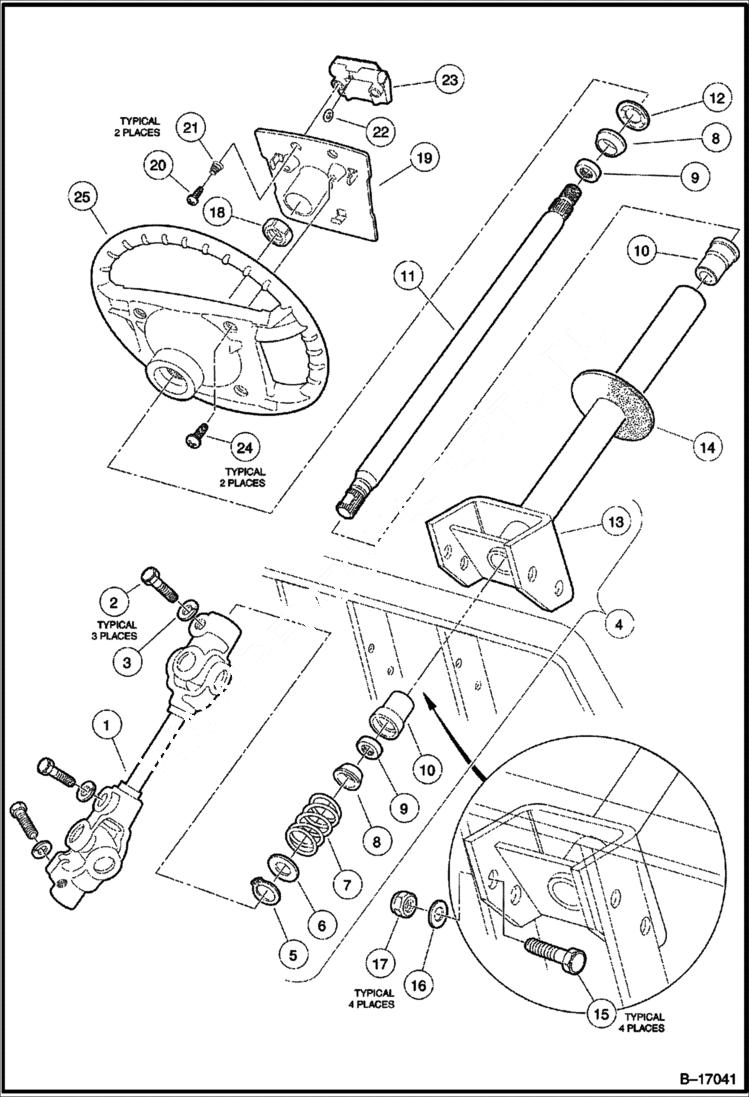

Запчасти Bobcat 2100S STEERING COLUMN CHASSIS

1

102010201CC

JOINT steering - W/Ref. 2-3

2

1017226CC

SCREW

3

7174CC

Washer

4

102013101CC

ASSEMBLY steering column - Ref. 5-13

5

1012605CC

RING

6

1012604CC

WASHER

7

1014217CC

SPRING

8

1014125CC

WEDGE

9

1014213CC

BEARING ASSY

10

1014126CC

SEAT

11

1017315CC

SHAFT steering column

12

1014214CC

RING

13

102013001CC

STRG COLUMN

14

102278001CC

BOOT steering column

15

320CC

SCREW

16

334CC

WASHER

17

8754CC

NUT

18

1017273CC

NUT

19

1016219CC

PLATE scorecard - W/Ref. 20-21

20

1012565CC

SCREW

21

1012566CC

SPRING

22

1016214CC

GRIP pencil

23

1016154CC

CLIP scorecard

24

1016663CC

SCREW

25

1016156CC

STRG WHEEL
