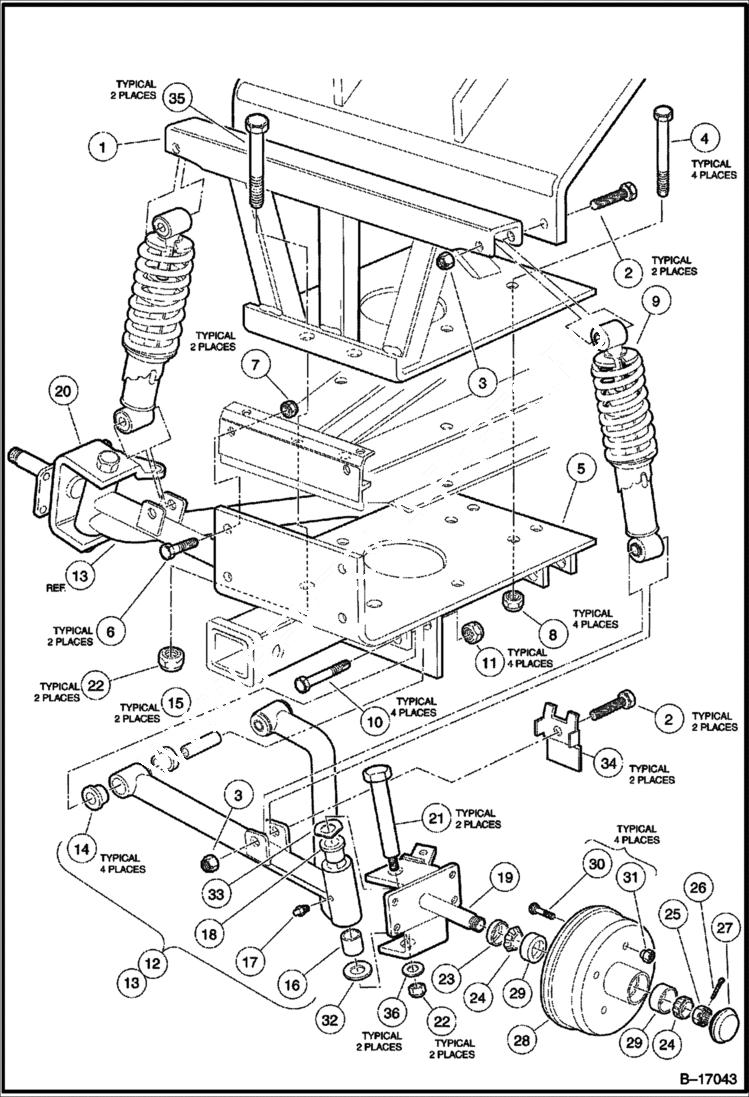

Запчасти Bobcat 2100S FRONT SUSPENSION CHASSIS

1

102012301CC

SHOCK TOWER

2

102023101CC

SCREW

3

1014555CC

NUT

4

7270CC

SCREW

5

102016801CC

PLATE suspension mounting

6

1010934CC

SCREW

7

7473CC

NUT

8

8754CC

NUT

9

102017601CC

SHOCK

10

1016387CC

SCREW

11

8754CC

NUT

12

102052401CC

A-ARM ASSY driver side - Ref. 14-16

13

102052301CC

A-ARM ASSY passenger side - Ref. 14-16

14

1016346CC

BUSHING

15

102066701CC

SLEEVE

16

8067CC

BUSHING

17

1015597CC

FITTING, 1/4-28 THRD FRM GREAS Was 1015587CC - A

18

7048CC

BUSHING

19

102016701CC

SPINDLE driver side

20

102016501CC

SPINDLE passenger side

21

102048601CC

BOLT

22

101903101CC

NUT

23

102023001CC

SEAL

24

102013701CC

BEARING

25

102013801CC

NUT

26

101838801CC

COTTER PIN

27

102013601CC

DUST COVER

28

102044201CC

BRAKE DRUM assy - W/Ref. 29-30

29

CUP NSS - bearing

30

1013787CC

STUD

31

1010984CC

NUT

32

1010150CC

BEARING thrust

33

1016389CC

WASHER

34

102100001CC

STOP steering

35

102067001CC

SCREW

36

1010028CC

WASHER
