Запчасти Bobcat 2100S REAR BODY TRIM MAIN FRAME

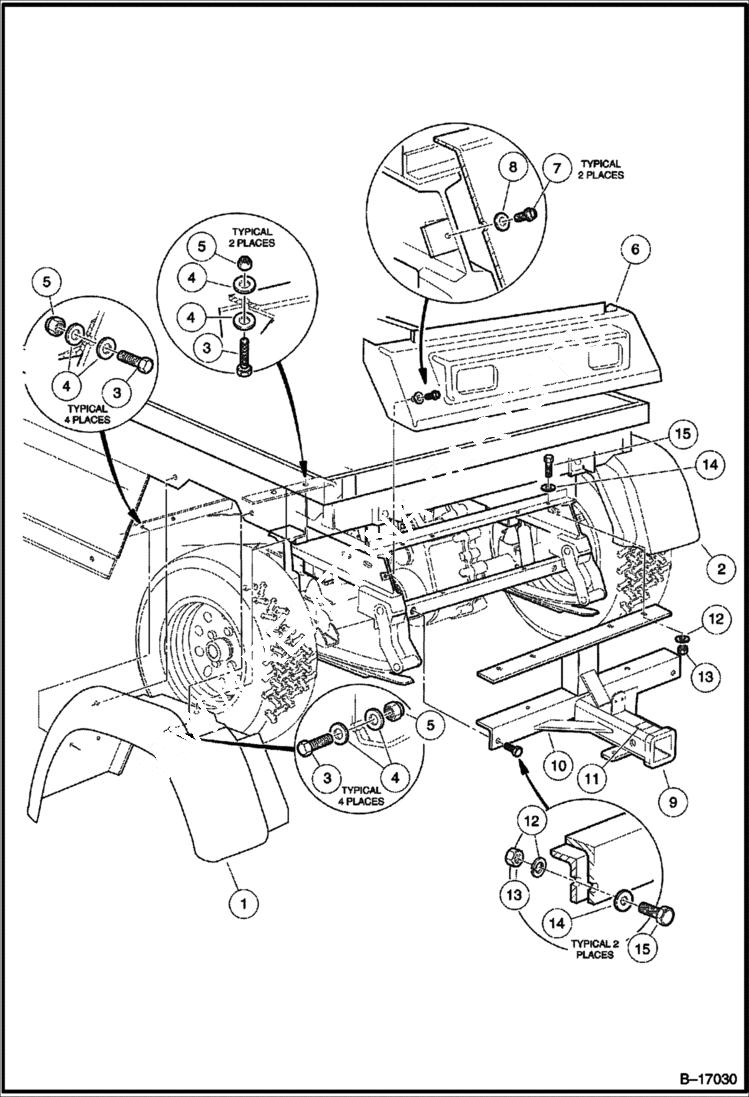

Схема запчастей Bobcat 2100S - REAR BODY TRIM MAIN FRAME

Артикул

Название

Примечание

Количество

1

102251701CC

FENDER driver side

2

102251601CC

FENDER passenger side

3

304CC

SCREW

4

1014306CC

WASHER

5

8233CC

NUT

6

1015530CC

Tailskirt

7

1012285CC

SCREW, 1/4-20 X .625 HX TYP TT

8

332CC

WASHER

9

102065103CC

KIT See Illustration REAR RECEIVER KIT/ B26616 rear receiver - W/Ref. 10-15

10

102056001CC

HITCH 2'' receiver

11

1011553CC

DECAL trailer hitch

12

7174CC

Washer

13

1242CC

Nut

14

1241CC

WASHER

15

1010934CC

SCREW

Выбрано товаров: 15
