Запчасти Bobcat 2100S CARGO BOX (2100S) MAIN FRAME

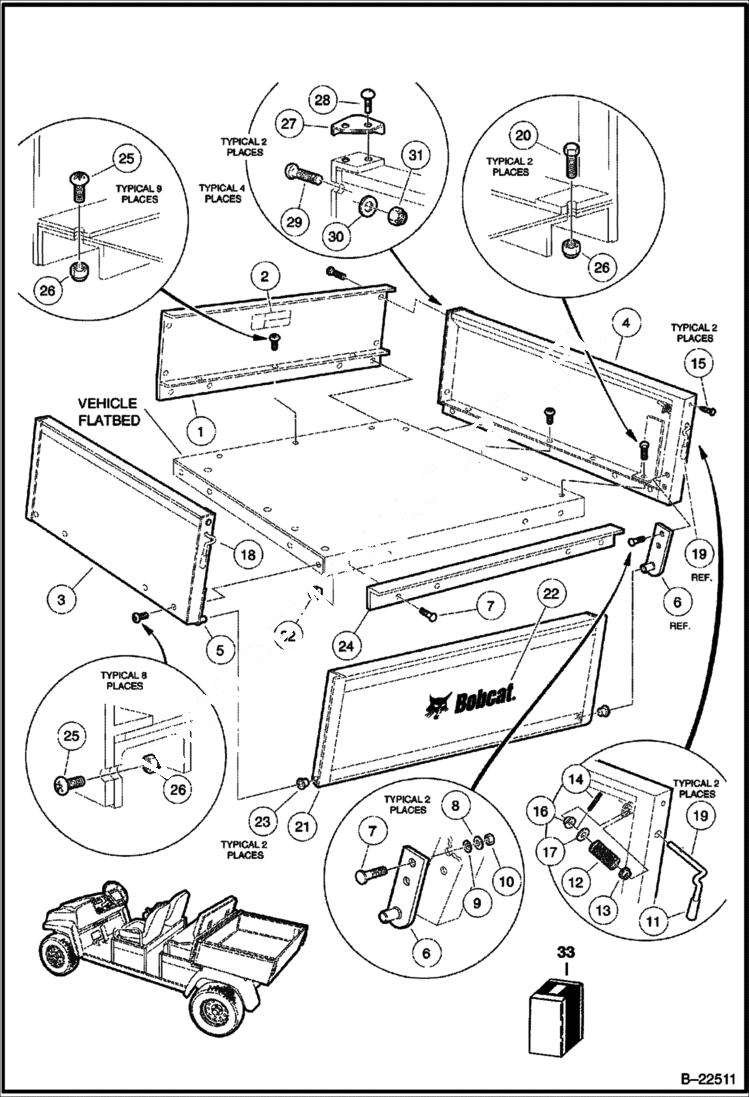

Схема запчастей Bobcat 2100S - CARGO BOX (2100S) MAIN FRAME

Артикул

Название

Примечание

Количество

1

1015413CC

FRONT PANEL W/Ref. 2

2

101553901CC

DECAL bed load

3

1015367CC

SIDE PANEL driver side - W/Ref. 5 & 7-18

4

1015365CC

SIDE PANEL passenger side - W/Ref. 6-17 & 19

5

1014513CC

BRACKET tailgate - driver side

6

1014514CC

BRACKET tailgate - passenger side

7

1014537CC

STUD

8

1241CC

WASHER

9

7174CC

Washer

10

1242CC

Nut

11

1015400CC

GRIP hand

12

1015390CC

SPRING

13

1032CC

BUSHING nylon

14

1231CC

ROLL PIN

15

1010434CC

FASTENER

16

1015363CC

BUSHING

17

1011990CC

Washer

18

1015313CC

LATCH driver side

19

1015245CC

LATCH passenger side

20

1010934CC

SCREW

21

102460101CC

TAILGATE ASSY W/Ref. 22

22

102335901CC

BOBCAT DECAL Bobcat

23

7049CC

BUSHING nylon

24

101894701CC

BRACKET tailgate

25

1015399CC

SCREW

26

7473CC

NUT

27

1014387CC

Cap corner

28

1014321CC

SCREW

29

1014415CC

SCREW

30

332CC

WASHER

31

8233CC

NUT

32

101963401CC

NUT

33

102460001CC

KIT cargo box - Ref. 1-32

Выбрано товаров: 33
