Запчасти Bobcat 2100S TILT BED, HINGE & LATCH (2100S) MAIN FRAME

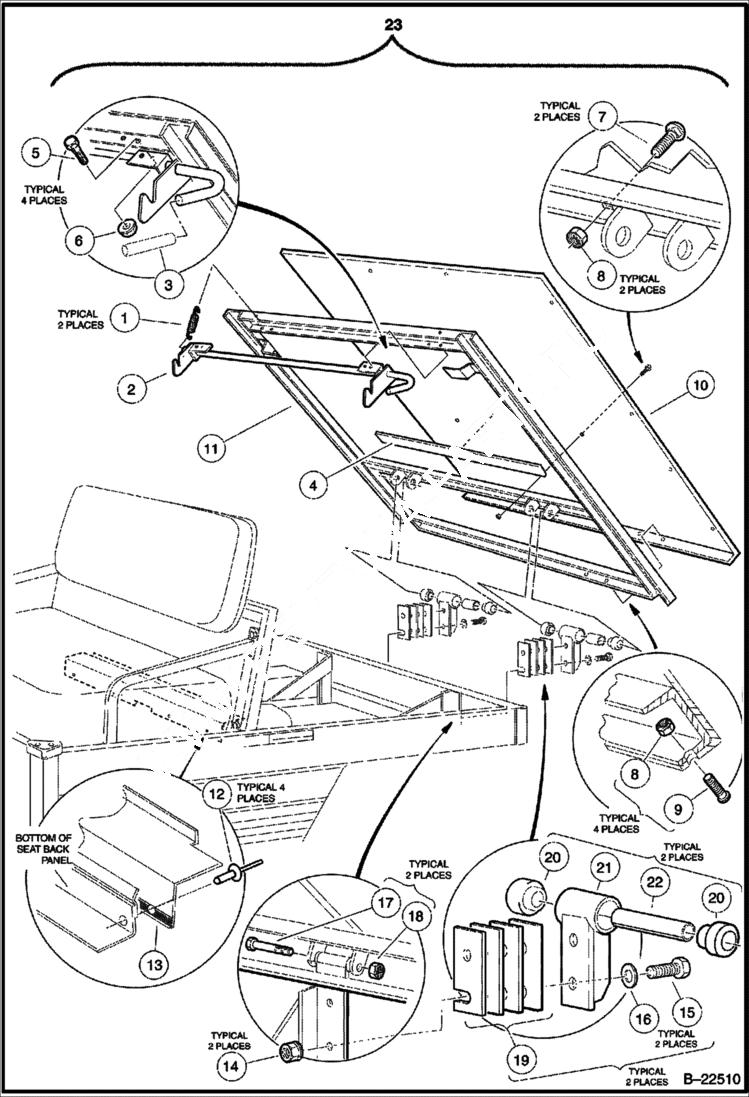

Схема запчастей Bobcat 2100S - TILT BED, HINGE & LATCH (2100S) MAIN FRAME

Артикул

Название

Примечание

Количество

1

1015391CC

SPRING

2

102335001CC

LATCH ASSY

3

1015400CC

GRIP

4

1014471CC

INSULATION Bulk - 42'' long

5

403CC

SCREW

6

101835601CC

NUT

7

1010435CC

BOLT

8

7473CC

NUT

9

1015399CC

SCREW

10

FLOOR PLATE NLA

11

FRAME ASSY NLA - tilt bed

12

7532CC

RIVET

13

1017976CC

SEAL bed

14

102065901CC

NUT

15

705CC

Screw

16

102066001CC

WASHER

17

8755CC

SCREW

18

8754CC

NUT

19

1015507CC

SHIM

20

1015583CC

BUSHING urethane

21

1015356CC

HINGE tilt bed

22

1012303CC

BUSHING steel

23

TILT BED ASSY manual lift - Ref. 1-11

Выбрано товаров: 23
