Запчасти Bobcat 2100S SEAT MAIN FRAME

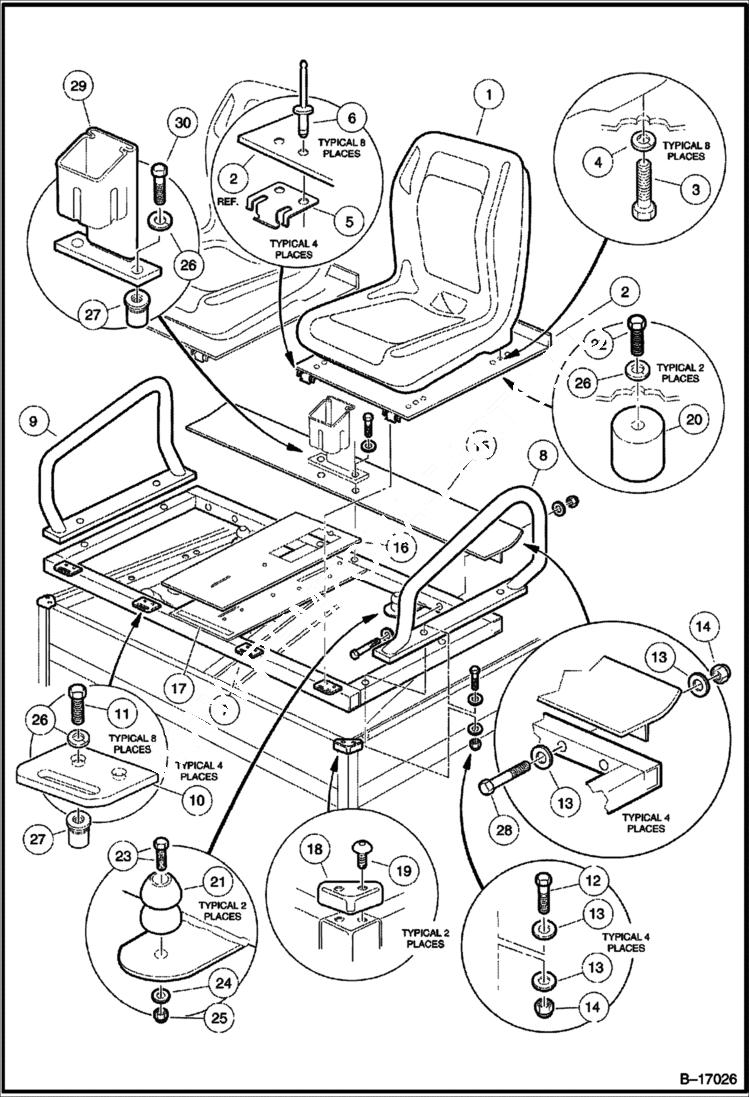

Схема запчастей Bobcat 2100S - SEAT MAIN FRAME

Артикул

Название

Примечание

Количество

1

103267001CC

BUCKET SEAT bucket - Was 102026501CC - A

1

COVER, SEAT VINYL NLA - covers both seats - gray W/pewter 4X4 embroidery - Was AM1245701CC - A

2

102023701CC

Panel seat

3

1012830CC

SCREW

4

1013734CC

WASHER - LOCK

5

1011652CC

PLATE hinge

6

102047001CC

RIVET

7

102026901CC

Weldment seat support

8

102024901CC

Armrest driver side

9

102025001CC

Armrest passenger side

10

1012412CC

Plate hinge body

11

7847CC

SCREW

12

8935CC

Screw

13

1011697CC

WASHER, 5/16 FLAT

14

7473CC

NUT

15

102029501CC

Seal bed

16

102026401CC

Cover console

17

Tape NLA

18

1014387CC

Cap corner

19

1014321CC

SCREW

20

102061101CC

CUP seat holder

21

102059001CC

BASE seat holder

22

102059401CC

SCREW

23

102059501CC

Screw

24

332CC

WASHER

25

101887601CC

NUT

26

451CC

WASHER - LOCK

27

102060201CC

Insert

28

7311CC

Screw

29

102068501CC

Holder radio/beverage

30

7847CC

SCREW

Выбрано товаров: 31
