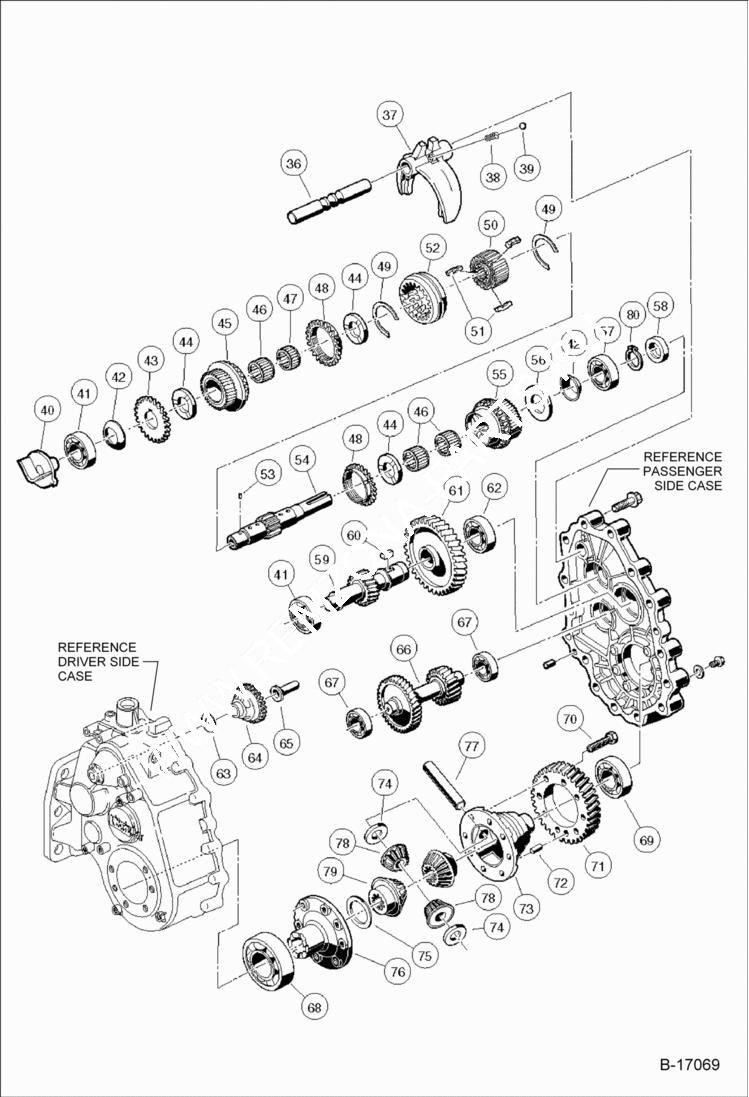

Запчасти Bobcat 2100 F & R TRANSMISSION & GEAR REDUCTION (Unitized Transaxle) DRIVE TRAIN

36

101892001CC

ROD shift

37

101890001CC

FORK shift

38

1012748CC

SPRING

39

1012747CC

BALL

40

101889401CC

GUIDE

41

AM10080CC

BEARING ball - Was 7336CC - B

42

1016338CC

WASHER

43

101892401CC

GEAR spur

44

101892201CC

PLATE thrust

45

102018801CC

GEAR input - 25 tooth (16 degree)

46

101927601CC

BEARING needle

47

101927501CC

BEARING needle

48

101981001CC

RING synchronizer (16 degree)

49

1012741CC

SPRING synchronizer

50

101928001CC

HUB synchronizer clutch

51

1012740CC

INSERT synchronizer

52

101927901CC

SLEEVE synchronizer

53

101927701CC

PIN

54

101889901CC

SHAFT input

55

101980801CC

GEAR input - 25 tooth (16 degree)

56

1016337CC

WASHER thrust

57

AM10081CC

BEARING ball - Was 101927801 CC - B

58

1012714CC

SEAL oil - inut shaft

59

102268201CC

GEAR 12 tooth

60

101893201CC

KEY

61

102018901CC

GEAR 70 tooth

62

102268401CC

BEARING ball

63

101893901CC

WASHER

64

101892301CC

GOVERNOR

65

101891601CC

SLEEVE

66

102019001CC

GEAR cluster idler

67

7335CC

BEARING ball

68

102032001CC

BEARING nner axle tube - driver side

69

7330CC

BEARING nner axle tube - passenger side

70

101928301CC

BOLT Was 102100801 CC - A

71

102268301CC

GEAR 64 tooth - output - Was 102019701 CC - A

72

102031701CC

PIN dowel

73

102267901CC

CASE gear carrier

74

1013774CC

PLATE thrust - idler gear

75

102268101CC

PLATE thrust - differential gear

76

102267801CC

COVER gear case

77

1013772CC

PIN differential

78

1013770CC

GEAR differential idler

79

102268001CC

GEAR differential

80

102453101CC

RING, SNAP
