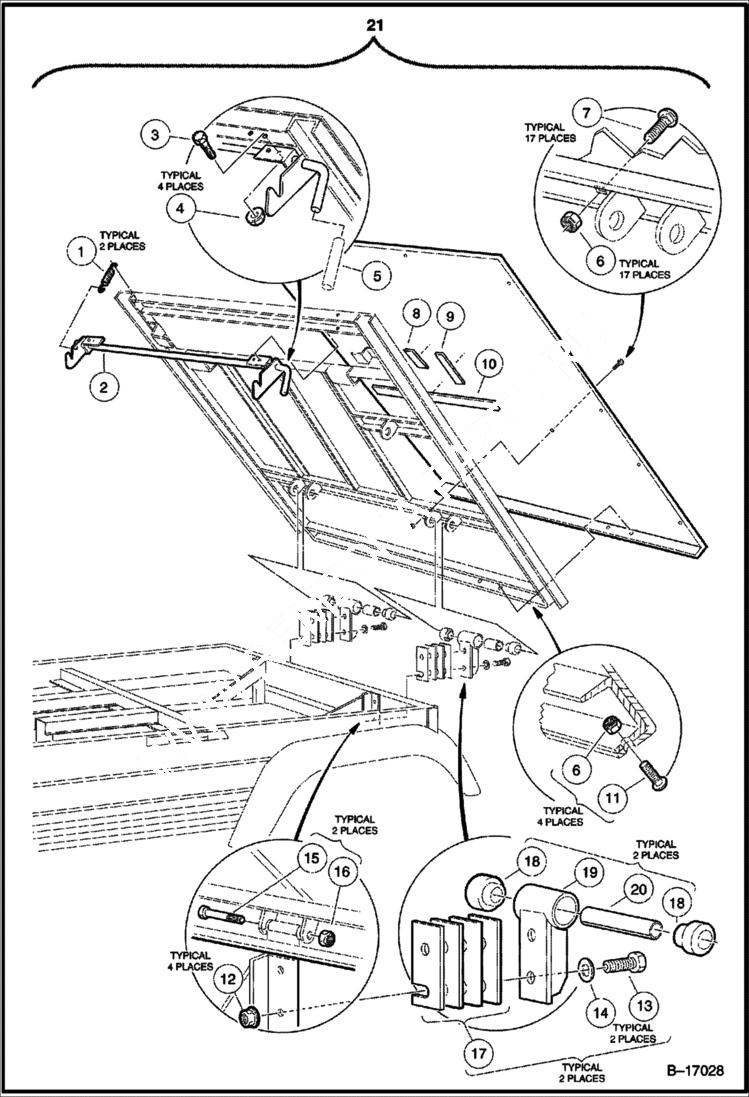

Запчасти Bobcat 2100 TILT BED, HINGE & LATCH MAIN FRAME

1

1015391CC

SPRING

2

1015252CC

LATCH assy

3

403CC

SCREW

4

101835601CC

NUT

5

1015400CC

GRIP

6

7473CC

NUT

7

1010435CC

BOLT

8

1014471CC

INSULATION bulk - 4''(101,6mm) long

9

1014471CC

INSULATION bulk - 8''(203,2mm) long

10

1014471CC

INSULATION bulk - 46''(1168,4mm) long

11

1015399CC

SCREW

12

102065901CC

NUT

13

705CC

Screw weld on

14

102066001CC

WASHER

15

8755CC

SCREW

16

8754CC

NUT

17

1015507CC

SHIM

18

1015583CC

BUSHING

19

1015356CC

HINGE

20

1012303CC

BUSHING

21

101542901CC

TILT BED assy - Ref. 1-11- when ordering a new tilt bed also Order a 102301401CC prop rod
