Запчасти Bobcat VR723 REAR HYDRAULIC HOOK INSTALLATION ACCESSORIES & OPTIONS

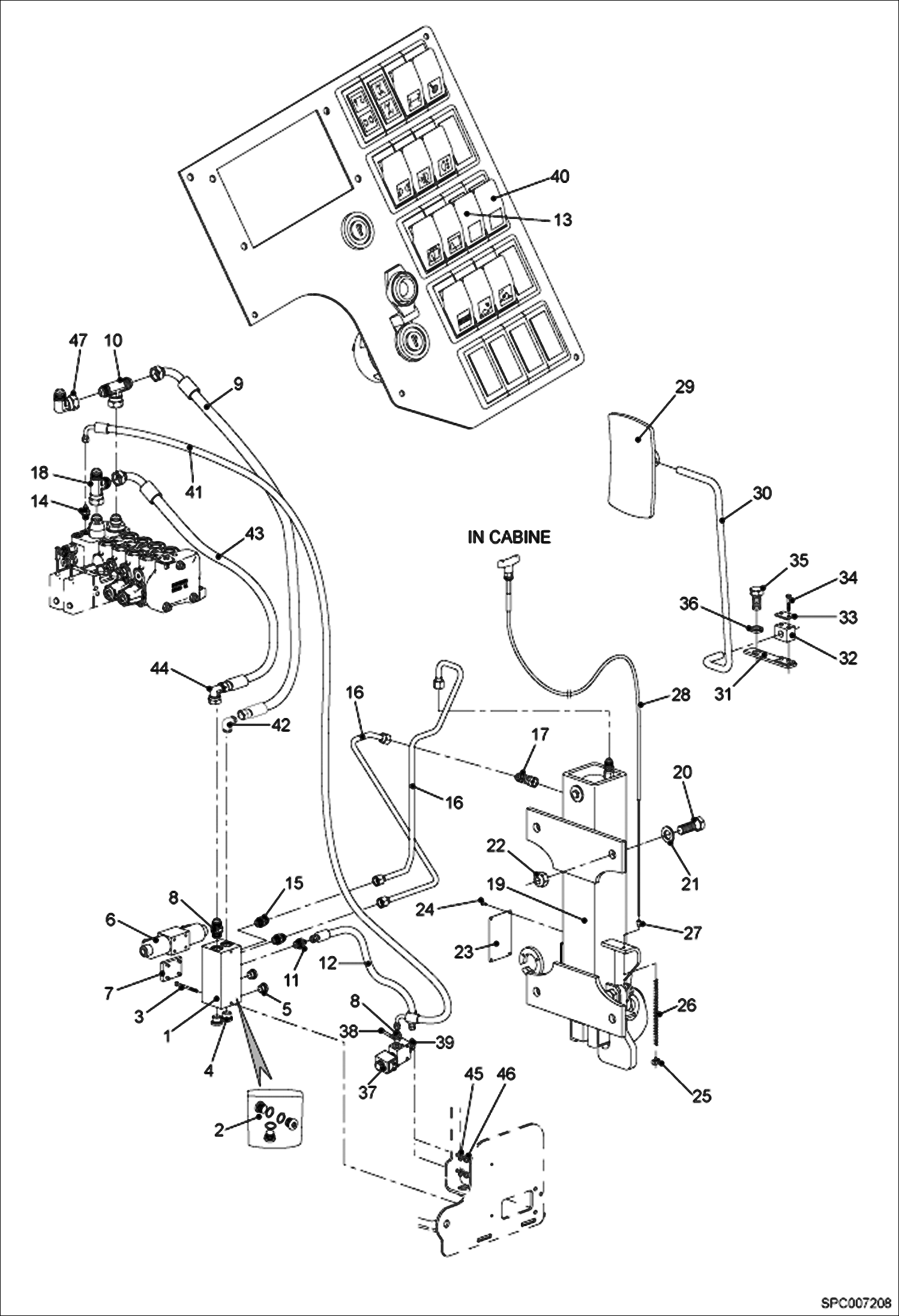

Схема запчастей Bobcat VR723 - REAR HYDRAULIC HOOK INSTALLATION ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6911079

HYDRAULIC BLOCK

2

6912535

SET OF PLUG

3

68566-9

SCREW

4

78743-2

PLUG

5

56029-2

PLUG MALE 3/8 BSP ALLEN

6

98360-1

VALVE, CONTROL

7

98353-6

PLATE

8

014375-30H

UNION

9

6913675

FLEXIBLE

10

008372-21X

TEE

11

65614-0

UNION

12

6916079

HOSE

13

65784-1

CAP

14

022375-28V

UNION

15

6919773

UNION Was 100375-38S

16

6910391

Adapter Was 6910535

17

6922478

REAR HOOD Ref. 26 + 27 Was 6919717

18

008372-34M

UNION

19

6917366

HOOK See Illustration REAR HYDRAULIC HOOK/ EM5349 Was 82425-0

20

1CM2060

SCREW Was 39584-8 - A

21

000350-08C

WASHER

22

100345-20M

NUT

23

PLATE NAP

24

43824-2

RIVET

25

7231142

STOP, CABLE Was 000368-80M - A

26

6922477

PLATE Was 6919718

27

90264-3

PLOT

28

84468-8

CABLE

29

63860-1

MIROR

30

79300-0

PIPE

31

84648-5

PLATE

32

7179623

SLEEVE Was 61358-8 - A

33

100228-57K

COVER

34

100338-23F

SCREW

35

01620-4

SCREW

36

15323-9

WASHER

37

6911845

SOLENOID 2-2

38

1CM650

SCREW Was 48829-6 - A

39

7186826

COUPLER, QUICK FEMALE Was 95993-2 - A

40

96598-8

SWITCH

41

6912226

FLEXIBLE

42

65285-9

ELBOW PIECE

43

6913675

FLEXIBLE

44

010370-90W

ELBOW PIECE

45

000350-01U

WASHER

46

100345-06W

NUT

47

008372-14Q

ELBOW

Выбрано товаров: 47
