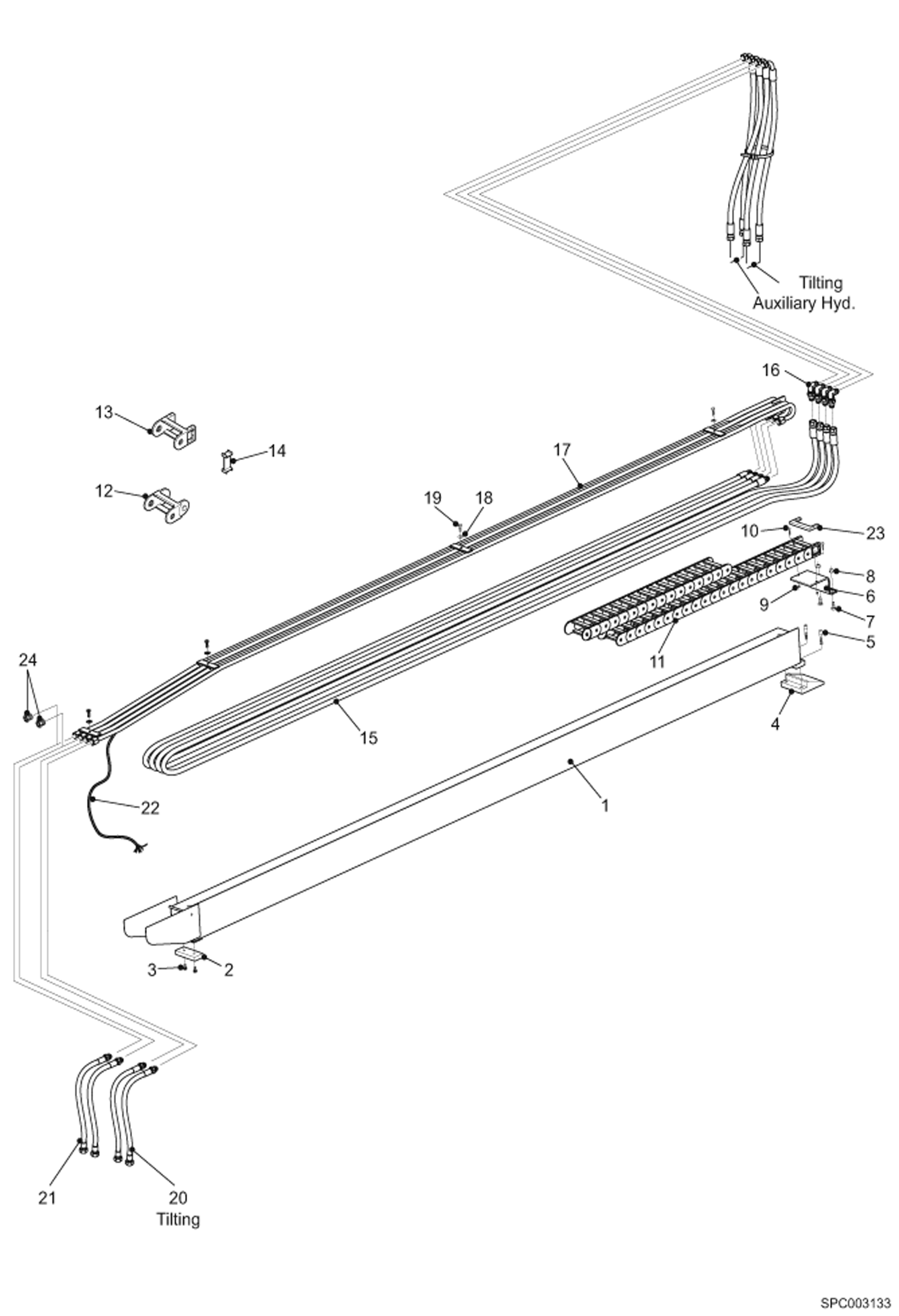

Запчасти Bobcat VR638 BOOM HYDRAULIC SUPPLY HYDRAULIC SYSTEM

1

6910842

CHANNEL

2

6910307

PATIN

3

7214544

SCREW Was 95502-1 - A

4

6908950

SHOE

5

54009-6

SCREW

6

6910278

PLATE

7

01605-5

SCREW

8

100345-09A

NUT

9

100345-05V

NUT

10

6GM525

SCREW Was 33786-5 - A

11

6909226

CHAIN W/Ref. 12-14

12

95571-6

LINK OF CHAIN

13

95572-4

LINK OF CHAIN

14

95088-1

SEPARATOR

15

6910210

HOSE

16

010370-57L

ELBOW UNION

17

6909214

HYDRAULIC PIPE ASSY

18

01718-6

WASHER

19

4CM825

BOLT Was 01597-4 - B

20

76401-9

HOSE

21

80407-0

HOSE ASSEM

22

6911736

WIRE HARNESS

23

7215442

PLATE, CHAIN FIXATION Was 6909681 - A

24

011374-03H

MALE PLUG
