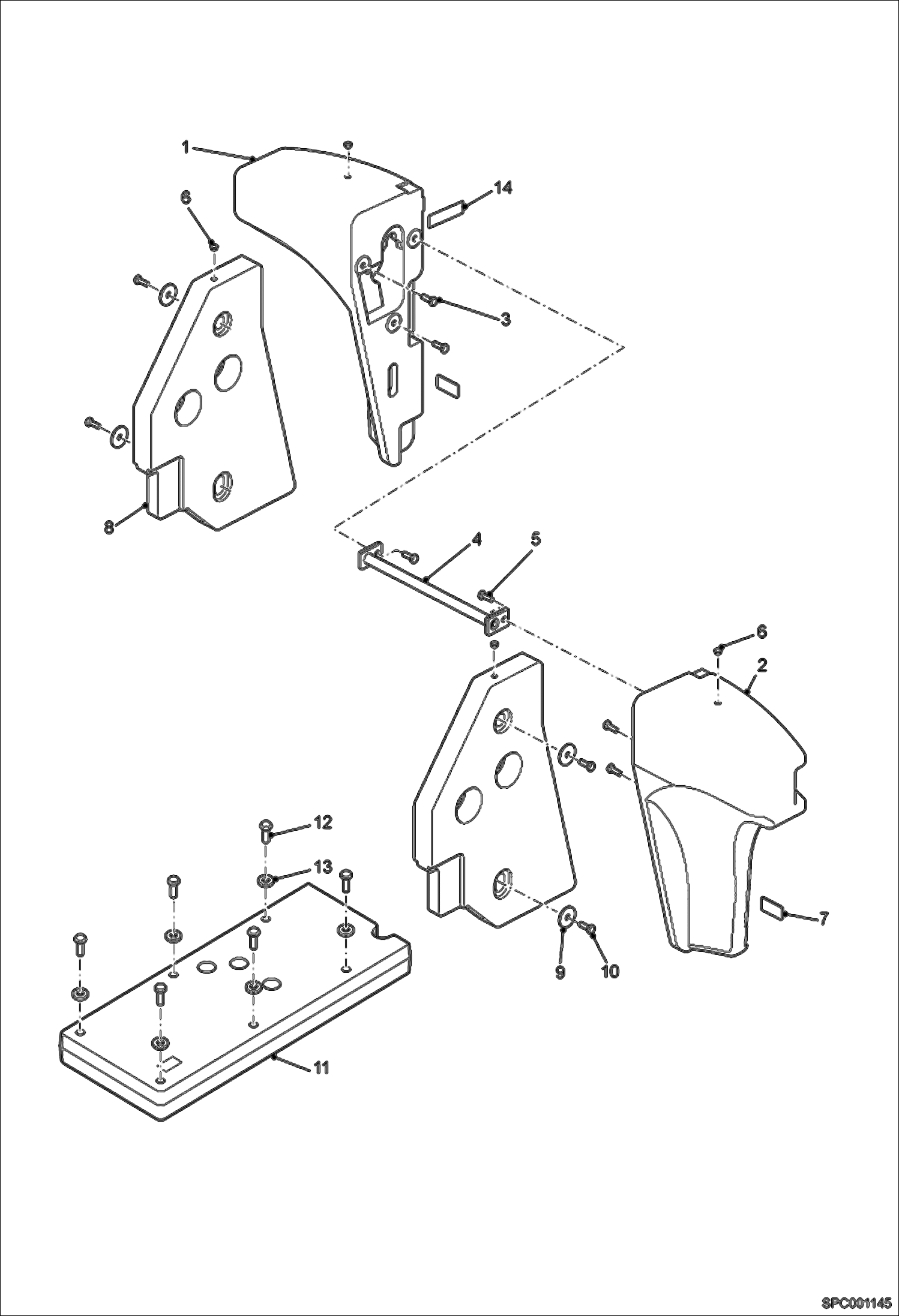

Запчасти Bobcat VR638 COUNTERWEIGHT MAIN FRAME

1

90841-8

COUNTERWEIGHT

2

90842-6

COUNTERWEIGHT

3

01547-9

SCREW

4

6910496

TUBE

5

01549-5

SCREW

6

7213176

PLUG Was 94548-5 - A

7

7214281

DECAL, REFLECTIVE Was 59736-9 - A

8

6912441

COUNTERWEIGHT

9

56726-3

WASHER

10

1CM1630

BOLT Was 10882-9 - A

11

6915367

ADDITIONAL BALLAST option

11

6915081

ADDITIONAL BALLAST option

12

84992-7

SCREW

13

79136-8

WASHER

14

6910909

FOAM STRIP
