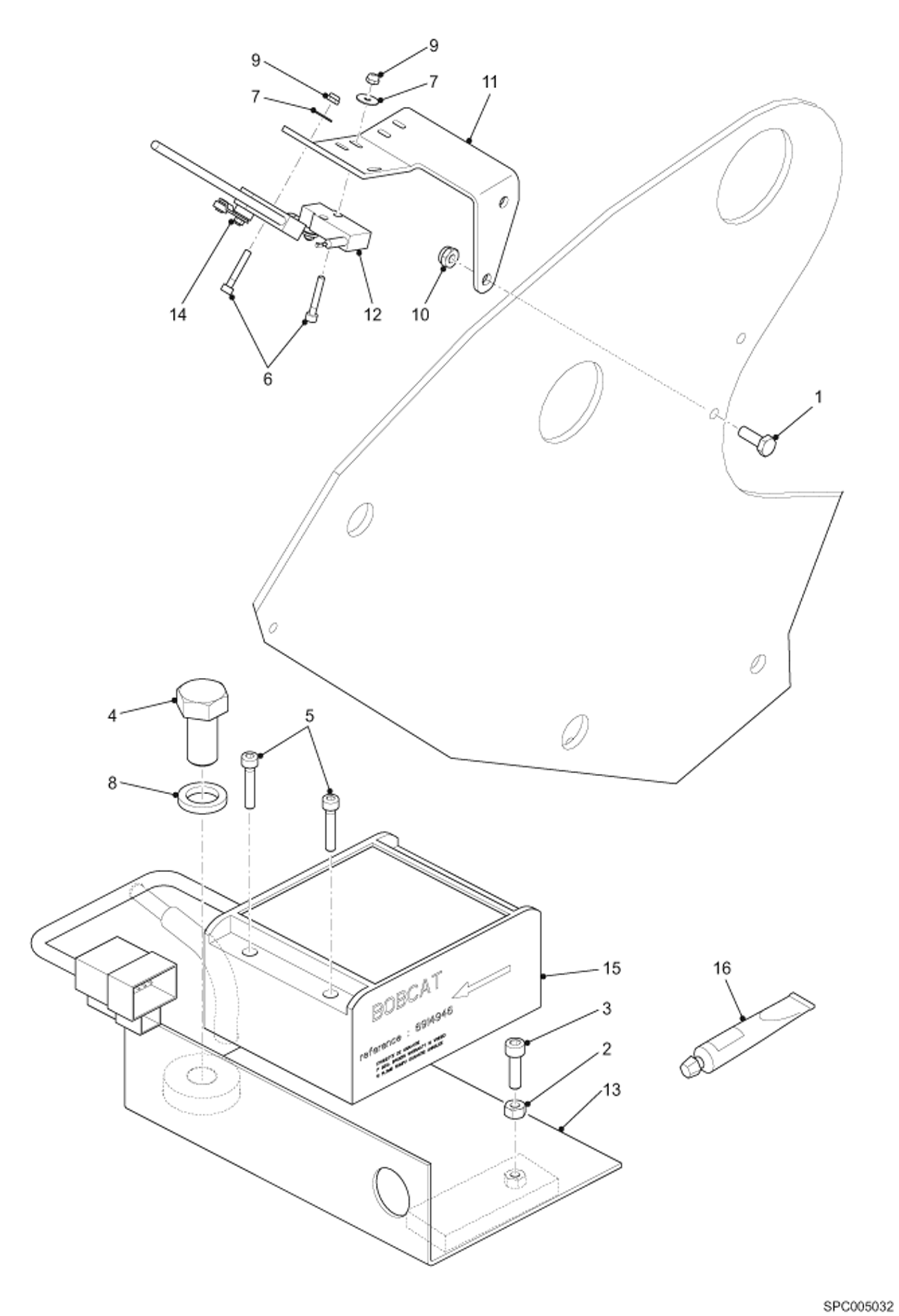

Запчасти Bobcat VR638 SECURITY CIRCUIT ELECTRICAL SYSTEM

1

01606-3

SCREW

2

01666-7

NUT

3

10167-5

SCREW

4

1CM1630

BOLT Was 10882-9 - A

5

6GM525

SCREW Was 33786-5 - A

6

53100-4

SCREW

7

61378-6

WASHER

8

89518-5

WASHER

9

100345-04U

NUT

10

100345-09A

NUT

11

6911477

PLATE

12

6911738

SWITCH

13

6913189

Support

14

6914720

SWITCH

15

6914946

Inclinometer

16

6901596

GREASE
