Запчасти Bobcat VR530C HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

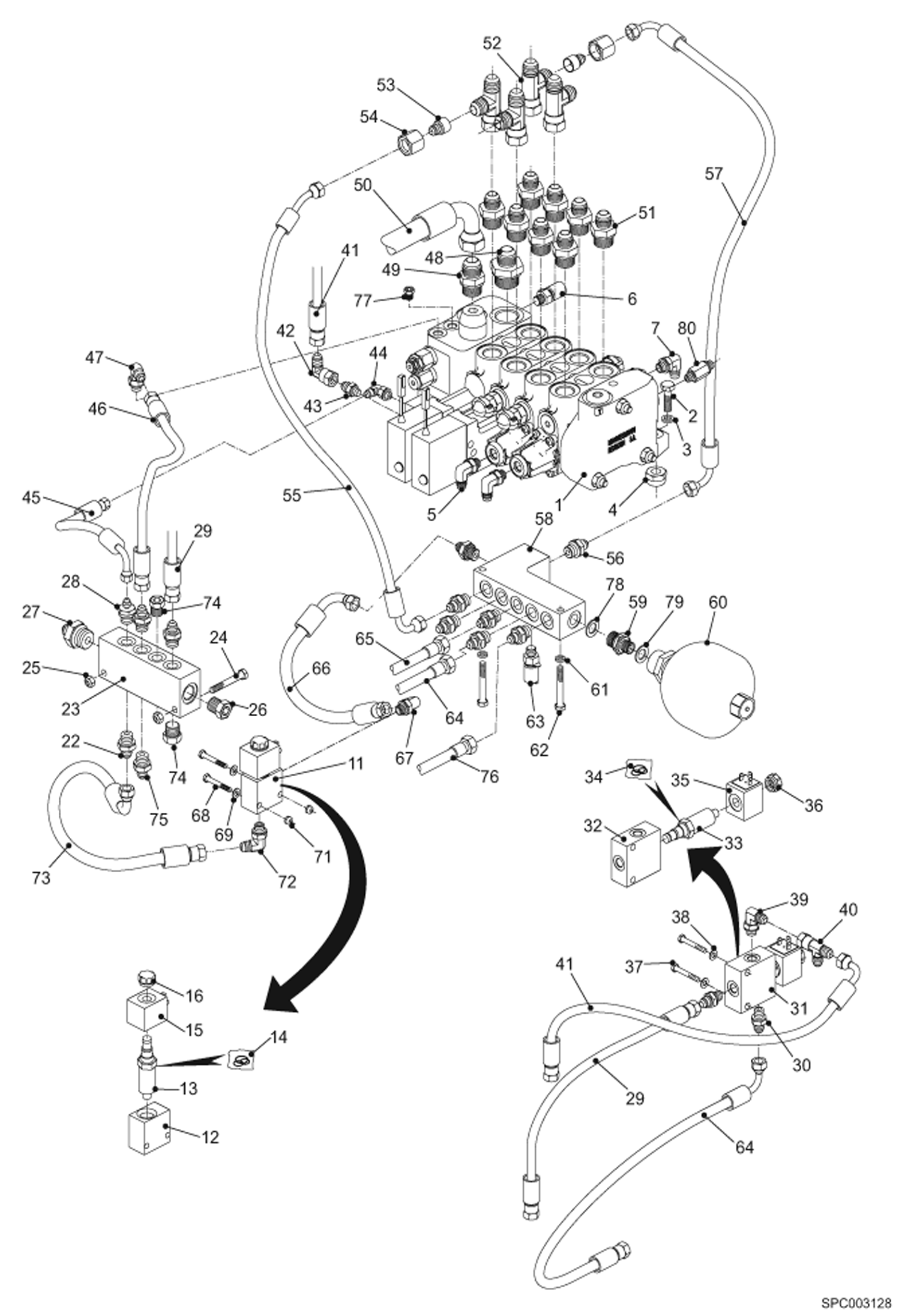

Схема запчастей Bobcat VR530C - HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6912490

DISTRIBUTOR See Illustration HYDRAULIC CONTROL VALVE/ SPC003109

2

1CM1040

BOLT Was 01608-9 - B

3

000350-21R

WASHER Was 89516-9 - B

4

100345-09A

NUT

5

100370-18C

ELBOW PIECE

6

54367-8

SWITCH, PRESSURE

7

100370-18C

ELBOW PIECE

11

6911845

SOLENOID 2-2 W/Ref. 12-16

12

BLOCK NLA - Order Ref. 11

13

6912531

VALVE

14

6912547

SET OF SEALS

15

6912528

COIL

16

6912529

NUT

22

77013-1

UNION

23

6910822

MANIFOLD , RETURN

24

10947-0

SCREW

25

01681-6

NUT Was 51851-4 - B

26

69187-3

PLUG MALE 3/4 BSP

27

100375-59Q

UNION 3/4 JIC 3/4 BSP

28

65614-0

UNION

29

6911817

HOSE, HYD

30

022375-31Z

UNION

31

6910208

VALVE 3/2 CE12V W/Ref. 32-36

32

BLOCK NLA - Order Ref. 31

33

6912527

VALVE

34

KIT, SEALS NLA - Order Ref. 31

35

6912528

COIL

36

6912529

NUT

37

000326-25M

SCREW

38

94574-1

WASHER

39

100370-18C

ELBOW PIECE

40

100372-06G

UNION

41

6913655

HOSE Was 6911111 - B

42

100370-29P

ELBOW PIECE

43

82181-9

UNION 9/16 JIC 1/8 BSPP

44

85955-3

ELBOW , 7/16 JIC 1/8 BSPP

45

6913658

HOSE Was 6911825 - B

46

6911817

HOSE, HYD

47

100370-18C

ELBOW PIECE

48

68609-7

UNION 1.1/16 JIC 1 BSPP

49

100375-40U

UNION

50

6910390

HOSE

51

014375-02C

UNION 7/8 JIC 3/4 BSPP

52

008372-28F

UNION

53

65236-2

REDUCTION 7/8JIC 9/16JIC (16-10)

54

014345-13D

NUT D16 - 7/8 JIC

55

6912467

TJ45 9/16 7.9 TJ45 9/16 L370

56

77013-1

UNION

57

6912467

TJ45 9/16 7.9 TJ45 9/16 L370

58

6910660

HYD BLOCK

59

014375-69A

ADAPTER MM 3/8 BSP 1/2 BSP

60

6911487

ACCUMULATOR 0,7L SB0210-0,75EI

61

89519-3

WASHER

62

10947-0

SCREW

63

54367-8

SWITCH, PRESSURE

64

6913655

HOSE Was 6911111 - B

65

6913656

HOSE Was 6912436 - B

66

6914033

HOSE Was 85283-0 - B

67

100370-18C

ELBOW PIECE

68

1CM650

SCREW Was 48829-6 - A

69

000350-01U

WASHER

71

100345-06W

NUT

72

100370-18C

ELBOW PIECE

73

85283-0

HOSE TJ90 9/16 9.5 TJ9/16 L320 P350

74

56029-2

PLUG MALE 3/8 BSP ALLEN

75

77013-1

UNION

76

6910160

HOSE TJ9/16 6.4 TJ7/16 L13250

77

56028-4

PLUG , MALE 1/4 BSPP 6 P.CREU

78

00581-9

RING

79

00580-1

RING

80

022375-31Z

UNION

Выбрано товаров: 71
