Запчасти Bobcat VR530C PARKING BRAKE HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

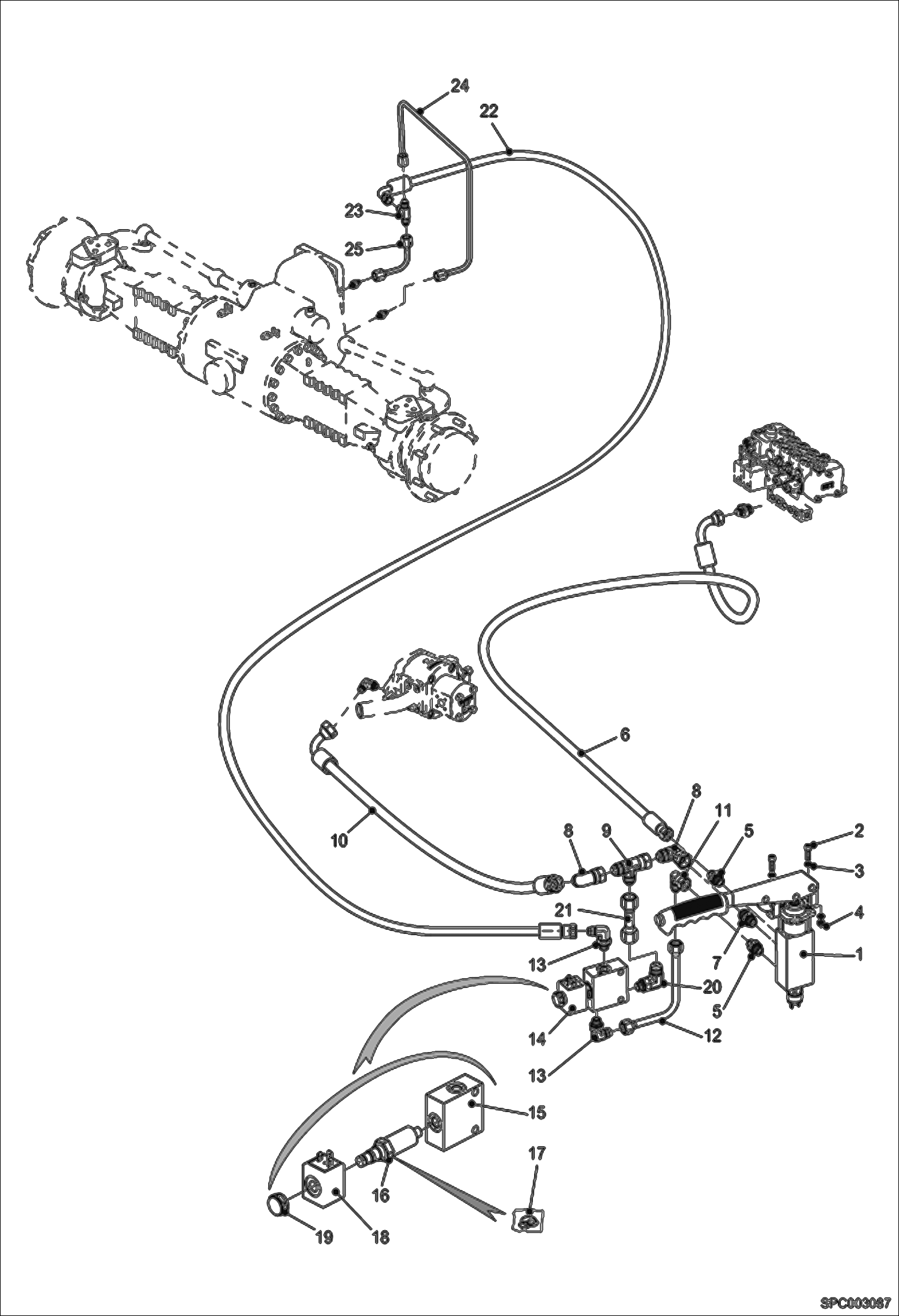

Схема запчастей Bobcat VR530C - PARKING BRAKE HYDRAULIC INSTALLATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

LEVER ASSY See Illustration PARKING BRAKE LEVER/ SPC001021 NAP Was 6909330

1

6915524

CONTROL, BRAKE HAND See Illustration PARKING BRAKE LEVER/ SPC001022

2

10167-5

SCREW

3

13416-3

WASHER

4

100345-06W

NUT

5

90289-0

UNION

6

70865-1

HOSE

7

96567-3

UNION 3/4JIC M14X1,5 DIN

8

008372-01B

ELBOW PIECE

9

008372-02C

UNION

10

96776-0

HOSE Was 82421-9

11

100370-29P

ELBOW PIECE

12

96383-5

TUBELINE

13

100370-18C

ELBOW PIECE

14

6910208

VALVE 3/2 CE12V W/Ref. 15-19

15

BLOCK NLA - Order Ref. 14

16

6912527

VALVE

17

KIT, SEALS NLA - Order Ref. 14

18

6912528

COIL

19

6912529

NUT

20

015370-13R

UNION

21

96382-7

TUBELINE

22

92991-9

HOSE

23

62849-5

UNION

24

90191-8

TUBE

25

89475-8

PIPE

Выбрано товаров: 26
